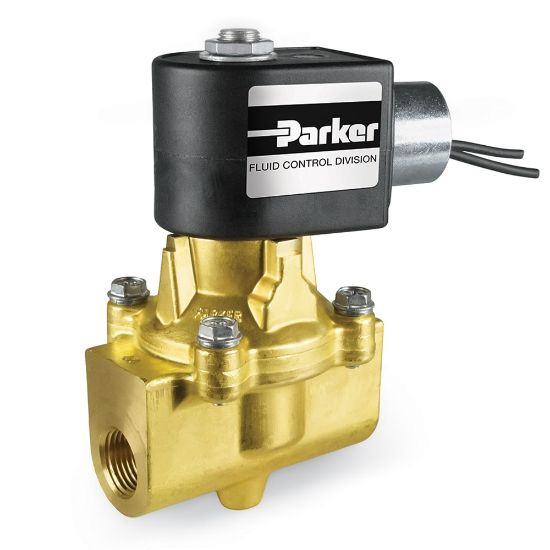

UL 429A Listed Actuating Valves - 73218BN4UNLVN0C111P3

Name: UL 429A Listed Actuating Valves - 73218BN4UNLVN0C111P3
SKU: 73218BN4UNLVN0C111P3

UL 429A certified solenoid valves are required for use as pre-action pilot valves in various fire suppression deluge systems.

Availability:

Backordered

SKU 73218BN4UNLVN0C111P3

POR

Qty:

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Port Type	NPT
Seal Material	NBR	Function	Normally Closed
Orifice Size	5/8	Input Voltage	120/60, 110/50
Actuation Type	Internally Piloted	Ingress Protection Rating	NEMA 4,4X
Minimum Pressure Differential	5.0	Maximum Pressure Differential	175.0
Valve Type	2 Way	Port Size	1/2
Power Consumption	10.0	Maximum Fluid Temperature	185.0
Maximum Ambient Temperature	150.0	Coil Type	1/2" NPT Conduit w/ 18" Leads
Installation	IOM 7212	Specifications Met	CSA Listed Safety Shutoff Valve C22.2 no. 139-13
Main Flow Coefficient	4.00	Preventive Maintenance Kit	7K815
Port Type	NPT	Body Material	Brass
Port Size	1/2 inch	Division	Fluid Control Division
Function	Normally Closed (NC)	Valve Type	2-Way
Seal Material	NBR	Actuation Type	Internal Pilot
Ingress Protection Rating	NEMA 4	Maximum Pressure Differential	175.0
Input Voltage	120/60 VAC	Configuration	All Ports in Body
Maximum Fluid Temperature	185 °F	Maximum Ambient Temperature	150 °F
Orifice Size	5/8	Coil Type	1/2" NPT Conduit w/ 18" Leads
Minimum Pressure Differential	5.0	Installation	IOM 7212
Power Consumption	10.0	Specifications Met	UL listed Safety Shutoff Valve UL 429
Main Flow Coefficient	4.00	Preventive Maintenance Kit	7K815
