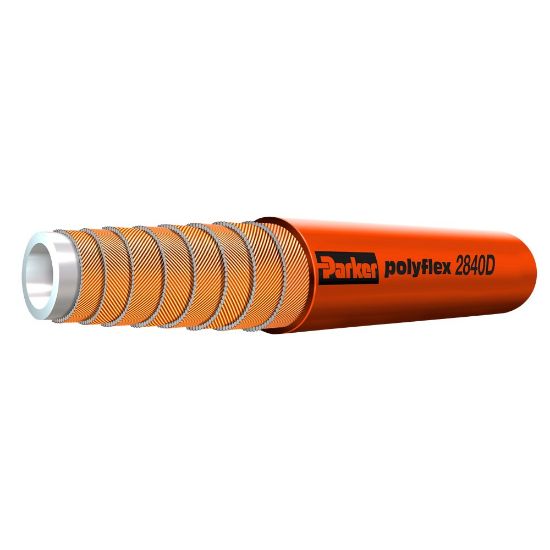

Picture of Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D - 2840D-05V35

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D - 2840D-05V35

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU 2840D-05V35
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)5/16Maximum Working Pressure (psi)43,500
DivisionParflex DivisionMinimum Operating Temperature-10 °C
MediaWaterOutside Diameter0.770 inch
Maximum Operating Temperature70 °CCover MaterialPolyamide (PA)
Inside Diameter7.9 mmSpecifications MetDIN 1829-2
Hose Inner Tube MaterialPolyoxymethylene (POM)ApplicationWaterblasting
Size-5Compatible Fitting2X Series
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireWeight0.72 lb/ft
Design Factor2.33:1Minimum Bend Radius250 mm
Maximum Operating Pressure43500 psi
