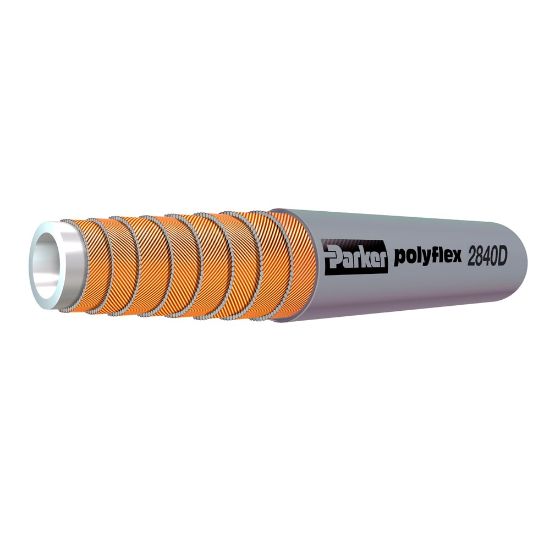

Picture of Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D - 2840D-08V37

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D - 2840D-08V37

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU 2840D-08V37
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/2Maximum Working Pressure (psi)36,250
DivisionParflex DivisionMediaChemicals
Size-8Inside Diameter1/2
Cover MaterialPolyamide (PA)Design Factor2.5:1
Maximum Operating Temperature158Specifications MetDIN 1829-2
Minimum Operating Temperature14Hose Inner Tube MaterialPolyoxymethylene (POM)
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireWeight1.68
ApplicationWater Jet CuttingOutside Diameter1.180
Compatible FittingWX SeriesMinimum Bend Radius13-3/4
Maximum Operating Pressure36250
