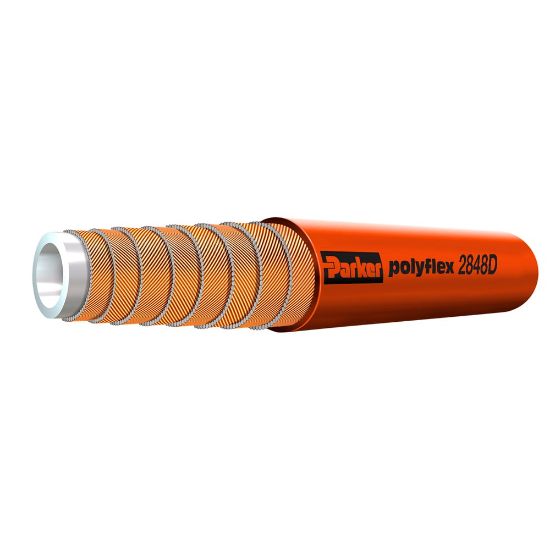

Picture of Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D - 2848D-08V35

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Ultra-High Pressure Water Jetting Hose - 58,000 psi - 2840D - 2848D-08V35

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU 2848D-08V35
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/2Maximum Working Pressure (psi)43,500
DivisionParflex DivisionMediaChemicals
Size-8Cover MaterialPolyamide (PA)
Maximum Operating Temperature158Specifications MetDIN 1829-2
Minimum Operating Temperature14Hose Inner Tube MaterialPolyoxymethylene (POM)
Hose Reinforcement Material6 Spirals of Maximum Tensile Steel WireApplicationWater Jet Cutting
Outside Diameter1.180Compatible FittingWX Series
Minimum Bend Radius13-3/4Maximum Operating Pressure43500
Weight2.50Design Factor2:8
Inside Diameter12.7
