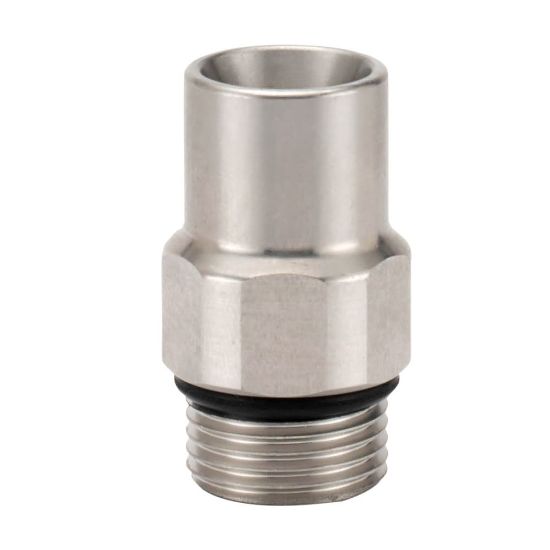

Picture of Universal Quick Disconnect Blindmate Couplings - UQDB Series - UQDB-371-10MO

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Universal Quick Disconnect Blindmate Couplings - UQDB Series - UQDB-371-10MO

UQDB Series, Universal Quick Disconnect Blindmate, flat face QDs are optimized for liquid cooling applications in data centers, servers and supercomputers. UQDB is based on an Open Compute, OCP design and is Nvidia Partner Network, NPN approved.
Availability:
Backordered
SKU UQDB-371-10MO
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection Thread Size3/4 - 16 UNFCoupling HalfFemale Coupler
Body Size3/8 (06) inchProduct TypePush to connect
Body MaterialStainless SteelColorNon-Colored
ApplicationLiquid CoolingDivisionQuick Coupling Division
Flow Rate3 Gal/minMaximum Operating Temperature158 °F
Connection TypeMale ThreadMinimum Operating Temperature32 °F
Hex Size1.06 inchMaximum Operating Pressure150 psi
Valve TypeFlat FaceSeal MaterialEPDM
