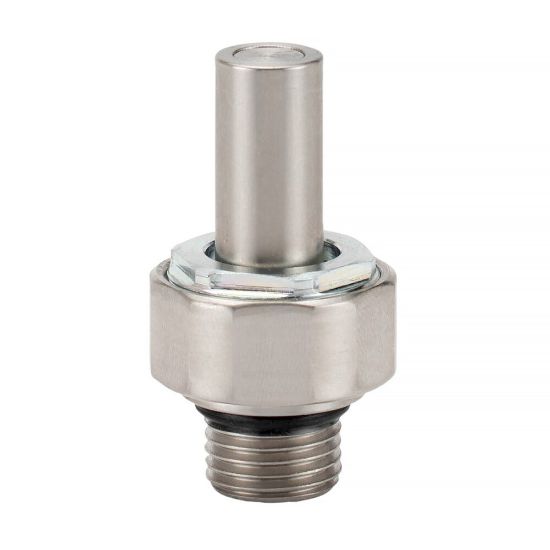

Picture of Universal Quick Disconnect Blindmate Couplings - UQDB Series - UQDB-502-10MO

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Universal Quick Disconnect Blindmate Couplings - UQDB Series - UQDB-502-10MO

UQDB Series, Universal Quick Disconnect Blindmate, flat face QDs are optimized for liquid cooling applications in data centers, servers and supercomputers. UQDB is based on an Open Compute, OCP design and is Nvidia Partner Network, NPN approved.
Availability:
Backordered
SKU UQDB-502-10MO
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection Thread Size7/8 - 14 UNFCoupling HalfMale Nipple
ColorNon-ColoredBody MaterialStainless Steel
DivisionQuick Coupling DivisionApplicationThermal Management
Maximum Operating Temperature158 °FFlow Rate4.7 gal/min
Minimum Operating Temperature32 °FBody Size1/2 (08) inch
Connection TypeMale ThreadMaximum Operating Pressure150 psi
Hex Size1.1 inchValve TypeFlat Face
Seal MaterialEPDMProduct TypePush to connect
