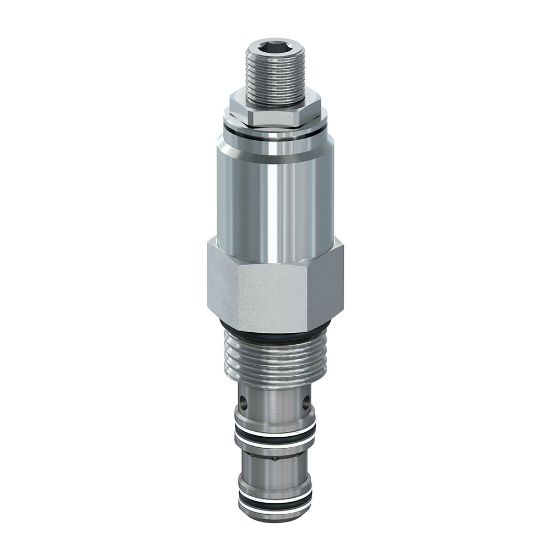

Picture of Unloading Relief Valves - RU101F30CV

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Unloading Relief Valves - RU101F30CV

Parker’s unloading pressure control valves automatically charge and maintain a specific pressure range within accumulators by loading and unloading pump flow. Usable with fixed or variable pumps and pressure of 420 bar (6000 psi) and flow up to 1 gpm.
Availability:
Backordered
SKU RU101F30CV
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Adjustment MechanismFixedMaximum Flow Rate1 GAL/MIN, 3.75 L/MIN
Seal MaterialFluorocarbonPressure Control Range200-3000 PSI, 13.8-210 BAR
Operating Temperature-15 to +400Leak Rate10 (port 2 to 3), 60 (port 1 to 2)
Maximum Pressure Setting3000Weight0.5
Body Materialn/aAdjustment MechanismFixed
Pressure Control Rangen/aActuation TypePressure Sensing
Maximum Operating Pressure3500Installation Torque16
Minimum Operating Temperature-15Seal MaterialFluorocarbon
DivisionHydraulic Valve Systems DivisionCavity SizeC10-3
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Maximum Inlet Pressure Rating3500
Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4Valve MaterialAll parts steel. All operating parts hardened steel
Maximum Tank Pressure3000DivisionHydraulic Systems Division
Standard Setting Pressure1500FunctionUnloading Relief Valve
Maximum Flow Rate1Flow Rate1
For Fluid TypeMineral-based or synthetic hydraulic fluidsMaximum Operating Temperature+400
