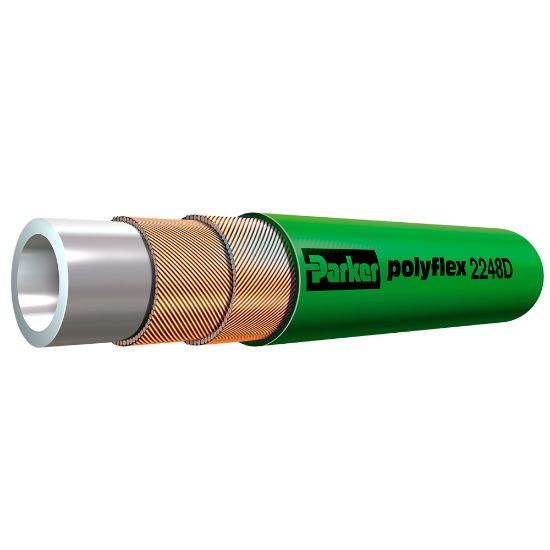

Picture of Water Blast Hose - 2240D/2248D - 2248D-05V33-TC

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Water Blast Hose - 2240D/2248D - 2248D-05V33-TC

High Pressure Water Blast 2240D/2248D Hoses are developed for use as a high pressure tube cleaning hose and for ultra high pressure applications.
Availability:
Backordered
SKU 2248D-05V33-TC
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)5/16Maximum Working Pressure (psi)15000
DivisionParflex DivisionMaximum Operating Pressure15000
MediaChemicalsWeight0.17
ApplicationConstruction EquipmentCover MaterialPolyamide (PA)
Inside Diameter5/16Design Factor2.5:1
Maximum Operating Temperature158Specifications MetDIN 1829-2
Minimum Operating Temperature14Outside Diameter0.530
Compatible FittingTX SeriesMinimum Bend Radius4-3/4
Hose Inner Tube MaterialPolyoxymethylene (POM)Hose Reinforcement Material2 Spirals of Maximum Tensile Steel Wire
