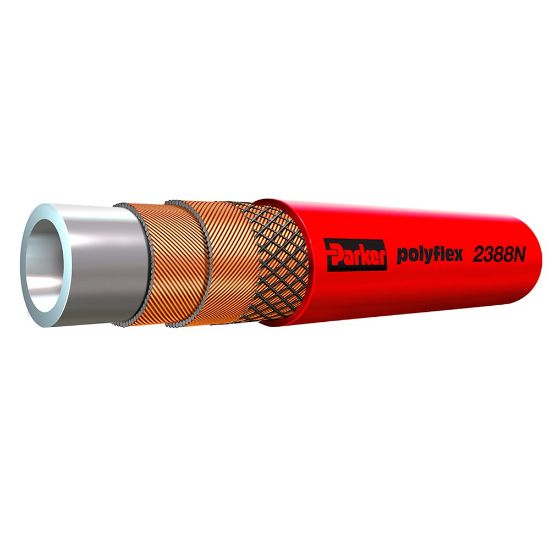

Picture of Water Blast Hose - 2380N/2388N - 2388N-04V14W

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Water Blast Hose - 2380N/2388N - 2388N-04V14W

Parker 2380N/2388N high pressure waterblast hoses operate up to 18,000 psi (1200 bar) and are ideal for dirt and paint removal.
Availability:
Backordered
SKU 2388N-04V14W
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/4Cover ColorRed
DivisionParflex DivisionMinimum Operating Temperature-40
Size-4MediaChemicals
Weight0.20Cover MaterialPolyurethane
Hose Inner Tube MaterialPolyamide (PA)ApplicationHigh Pressure Hydraulics
Inside Diameter1/4Design Factor2.5:1
Maximum Operating Temperature158Specifications MetDIN 1829-2
Outside Diameter0.530Maximum Operating Pressure18560
Compatible FittingKY SeriesMinimum Bend Radius1-1/2
Hose Reinforcement Material2 Spirals and 2 Open Spirals of High Tensile Steel Wire
