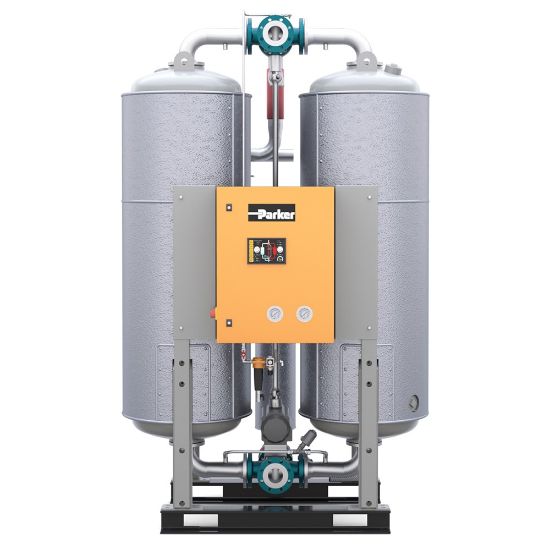

Picture of WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer - W155/11VM5-F400CT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer - W155/11VM5-F400CT

Low energy large flow industrial compressed air dryers providing flow rates up to 7300m³/h @ 7 barg with a dew point of -40°C (-20°C and -70°C options). Energy savings of up to 25%.
Availability:
Backordered
SKU W155/11VM5-F400CT
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
OptionsHigh Performance Insulation for PDP <-40°CFlow Rate1470 m³/h ) @ 7 barg (865 cfm @ 102 psig)
Port SizeDN 80Electrical RequirementsStandard: 400V 3ph 50Hz<br/><br/>Options on request.
Product TypeCompressed Air DryerISO GradeStandard: Class 2.2.2<br/> Options: Class 2.1.2 or Class 2.3.2
Height91 inchDivisionGas Separation and Filtration Division EMEA
Noise Level80 to 85 dBAOperating Pressure4 to 11 barg
Product SeriesWVM 5Operating Temperature41 to 104 °F
BrandPARKERDivisionGas Separation and Filtration Division EMEA
Connection TypeFlangedProduct StyleLow Energy - Vacuum Regenerated
ApplicationCompressed Air ApplicationsWeight1460 mm
Pressure Dew PointOptions: -70°C (-100°F) or -20°C (-4°F)Ingress Protection RatingIP54 Indoor Use Only
Specifications MetPED 2014/68/EU Fluid Group IIIndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals
Depth1412.0 mmWidth67 inch
TechnologyFiltrationAmbient Temperature104.0 °F Maximum
Product resources

Literature and Reference Materials
