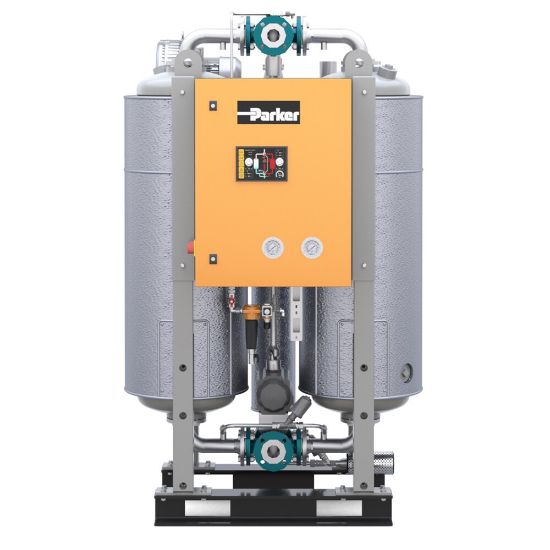

Picture of WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer - W45/11VM5-F400CT

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

WVM Series Large Flow Low Energy Vacuum Regenerated Compressed Air Dryer - W45/11VM5-F400CT

Low energy large flow industrial compressed air dryers providing flow rates up to 7300m³/h @ 7 barg with a dew point of -40°C (-20°C and -70°C options). Energy savings of up to 25%.
Availability:
Backordered
SKU W45/11VM5-F400CT
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port SizeDN 50Flow Rate450 m³/h @ 7 barg (265 cfm @ 102 psig)
OptionsHigh Performance Insulation for PDP <-40°CIndustryIndustrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals
Ambient Temperature104.0 °F MaximumTechnologyFiltration
Ingress Protection RatingIP54 Indoor Use OnlyPressure Dew PointOptions: -70°C (-100°F) or -20°C (-4°F)
BrandPARKERDivisionGas Separation and Filtration Division EMEA
Depth48 inchOperating Pressure4 to 11 barg
DivisionGas Separation and Filtration Division EMEAElectrical RequirementsStandard: 400V 3ph 50Hz<br/><br/>Options on request.
Height80 inchNoise Level80 to 85 dBA
Specifications MetPED 2014/68/EU Fluid Group IIWeight1698 inch
Product SeriesWVM 5ISO GradeStandard: Class 2.2.2<br/> Options: Class 2.1.2 or Class 2.3.2
Product TypeCompressed Air DryerProduct StyleLow Energy - Vacuum Regenerated
Connection TypeFlangedWidth1222.0 mm
Operating Temperature41 to 104 °FApplicationCompressed Air Applications
