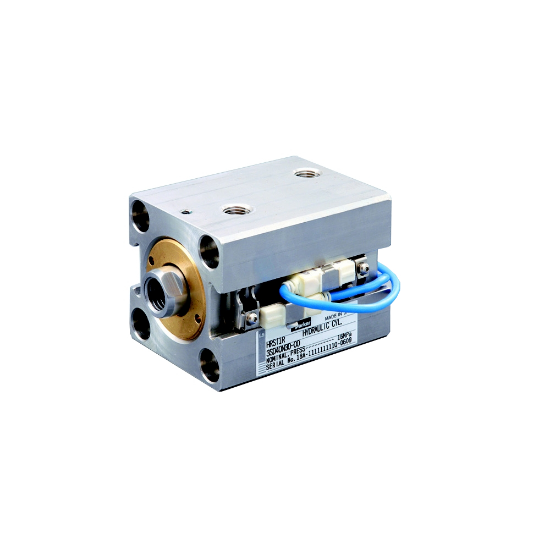

Picture of 16MPa Heat Resisting Compact Hydraulic Cylinder Model:HRST1 - HRST1R

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

16MPa Heat Resisting Compact Hydraulic Cylinder Model:HRST1 - HRST1R

HRST1 series of heat-resistant compact hydraulic cylinders for 16MPa that can be used up to an ambient temperature of 150 ℃. The bore size is φ32 to φ80.
Availability:
Backordered
SKU HRST1R
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Mounting StyleSD,LD,FA,FBScrew ToleranceJIS 6g/6H
TypeDouble Acting Single Rod, Switch setMaximum Working Pressure (MPa)16
Sensor typeSW013Rod End Thread TypeFemale thread and male thread
Fluid TypePetroleum-based fluid and phosphate ester fluidNominal Pressure (MPa)16
Minimum Operating Pressure (MPa)0.3Stroke Length Tolerance (mm)0-+0.8
Speed Range8-100mm/sCushioning TypeNone
Proof Pressure (MPa)24Bore Diameter (mm)32, 40, 50, 63, 80
Temperature Range (C)-10-+130 (No freezing)Seal Material3:FluorocarbonThe seal of cylinders with bores of 20 and 25mm is only HNBR ; 6:HNBR
Body MaterialStainless SteelDivisionTAIYO Division
