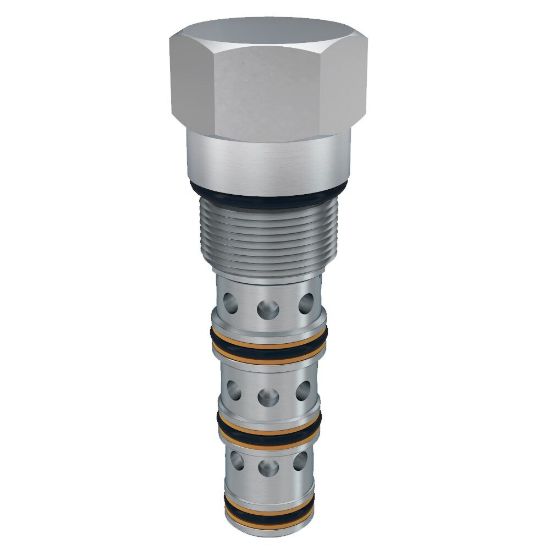

2 Way Pilot Operated Directional Control Valves - R04A4-5.0V

Name: 2 Way Pilot Operated Directional Control Valves - R04A4-5.0V
SKU: R04A4-5.0V

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:

Backordered

SKU R04A4-5.0V

POR

Qty:

Products specifications

Attribute name	Attribute value
Switching Pressure	73 PSI, 5 BAR	Flow Rate	21 GAL/MIN, 80 L/MIN
Sealed Pilot Included	No	Configuration	Normally Open
Seal Material	Fluorocarbon	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Actuation Type	Pilot to Close	Flow Rate	80 L/min
Configuration	Normally Open	Function	Diverter
Flow Direction	2-3 or 3-2	Maximum Operating Temperature	+204 °C
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min	Minimum Operating Temperature	-15 °F
Maximum Operating Pressure	420 bar	Weight	0.37 lb
Cavity Size	C10-4	Pilot Location	External
Maximum Inlet Pressure Rating	420 bar	Drain Option	External
Operation Type	Pilot Operated	Operating Temperature	-15 to +400 °F
Seal Material	Fluorocarbon	Switching Pressure	5 bar
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	21 Gal/min
Standard Flow Rate Setting	47 L/min	Division	Mobile Hydraulic Systems Division Europe
Sealed Pilot Included	No	Installation Torque	37 lb-ft
