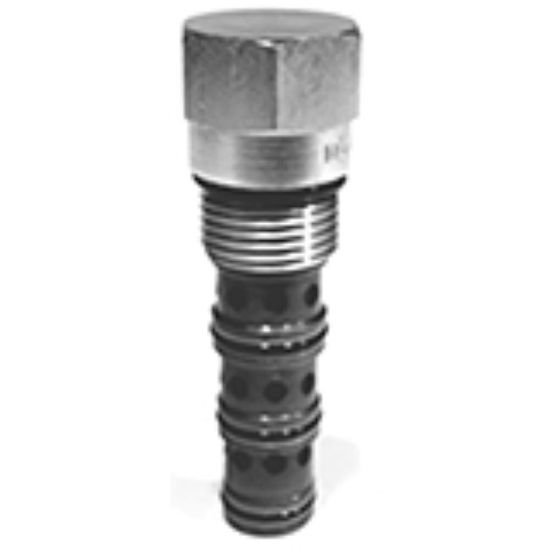

2 Way Pilot Operated Directional Control Valves - R04B4-10.0V

Name: 2 Way Pilot Operated Directional Control Valves - R04B4-10.0V
SKU: R04B4-10.0V

A pilot-operated, cartridge style screw-in hydraulic directional valve used in two way circuits with remote pilot actuation. Available in both normally-open and normally-closed orientation.

Availability:

Backordered

SKU R04B4-10.0V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Sealed Pilot Included	No
Switching Pressure	145 PSI, 10 BAR	Flow Rate	21 GAL/MIN, 80 L/MIN
Configuration	Normally Closed	Installation Torque	37
Maximum Operating Pressure	6000	Division	Hydraulic Valve Systems Division
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Normally Closed
Actuation Type	Pilot to Open	Standard Flow Rate Setting	12
Valve Material	All parts steel. All operating parts hardened steel	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Switching Pressure	145	Pilot Location	External
Operation Type	Pilot Operated	Flow Rate	21
Drain Option	External	Seal Material	Fluorocarbon
Minimum Operating Temperature	-15	Operating Temperature	-15 to +400
Maximum Inlet Pressure Rating	6000	Division	Mobile Hydraulic Systems Division Europe
Body Material	n/a	Flow Direction	2-3 or 3-2
Function	Diverter	Sealed Pilot Included	No
Maximum Flow Rate	21	Cavity Size	C10-4
Maximum Operating Temperature	+400	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Weight	0.37	Leak Rate	55 @ 1450 PSI (100 BAR)
