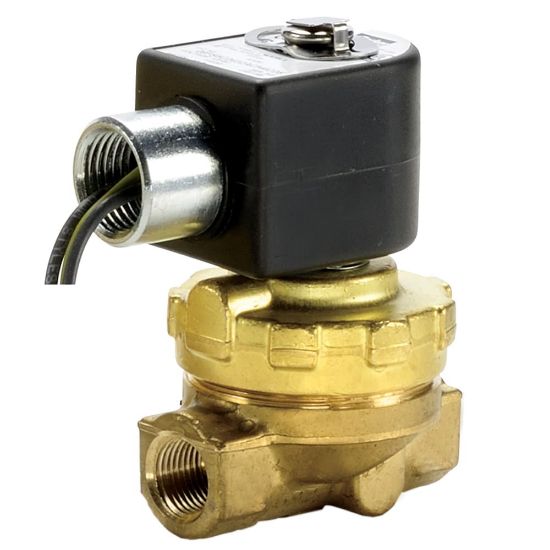

25 & S5 Series - Water, Hot Water, & Steam Valves - 06F25CL332A3F4C80

Name: 25 & S5 Series - Water, Hot Water, & Steam Valves - 06F25CL332A3F4C80
SKU: 06F25CL332A3F4C80

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:

Backordered

SKU 06F25CL332A3F4C80

POR

Qty:

Products specifications

Attribute name	Attribute value
Media	Water, Hot Water	Function	Normally Closed
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	3/8
Port Type	NPT	Installation	IOM 7320
Orifice Size	3/8	Body Material	Lead-Free Brass
Input Voltage	24.0	Seal Material	EPDM
Actuation Type	Internally Piloted	Power Consumption	11.5
Specifications Met	UL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC	Main Flow Coefficient	3.0
Ingress Protection Rating	NEMA 4,4X	Maximum Fluid Temperature	150.0
Preventive Maintenance Kit	06F25CL332A3FR	Maximum Ambient Temperature	77.0
Maximum Pressure Differential	130.0	Minimum Pressure Differential	1.0
Valve Type	2 Way	Maximum Steam Pressure	-
Media	Hot Water	Function	Normally Closed (NC)
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	3/8
Port Type	NPT	Installation	IOM 7320
Orifice Size	3/8	Body Material	Lead-Free Brass
Input Voltage	24	Seal Material	EPDM
Actuation Type	Internal Pilot	Power Consumption	11.5
Specifications Met	UL	Division	Fluid Control Division
Main Flow Coefficient	3.0	Ingress Protection Rating	NEMA 4X
Maximum Fluid Temperature	150	Preventive Maintenance Kit	06F25CL332A3FR
Maximum Ambient Temperature	77	Maximum Pressure Differential	130.0
Minimum Pressure Differential	1.0	Valve Type	2-Way
Maximum Steam Pressure	-

Product resources

Literature and Reference Materials

Tube Seal (PDF)
