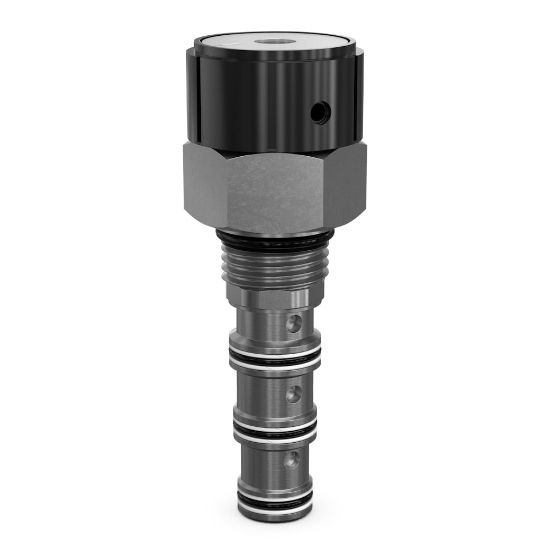

4 Way Rotary Type Manual Valve - DM104FKD8

Name: 4 Way Rotary Type Manual Valve - DM104FKD8
SKU: DM104FKD8

REGIONAL - Parker’s manually operated 4-way, 2 or 3-position directional control spool valve is capable of flows up to 7.5 lpm (2 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Availability:

Backordered

SKU DM104FKD8

POR

Qty:

Products specifications

Attribute name	Attribute value
Spool Type	Tandem Center	Configuration	Finger Knob
Detents	2 position detent	Seal Material	Nitrile
Spool Type	Tandem Center	Leak Rate	164 @ 3500 PSI (240 BAR)
Configuration	Finger Knob	Actuation Type	Rotary
Maximum Operating Pressure	3500	Function	Spool Type
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to +250
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Inlet Pressure Rating	3500	Maximum Operating Temperature	+250
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Tank Pressure	500
Rotation Angle	90	Detents	2 postion detent
Cavity Size	C10-4	Division	Hydraulic Systems Division
Flow Rate	7.5	Seal Material	Nitrile
Minimum Operating Temperature	-30	Maximum Flow Rate	2
Installation Torque	16	Weight	0.3
Operation Type	Manual	Body Material	n/a
