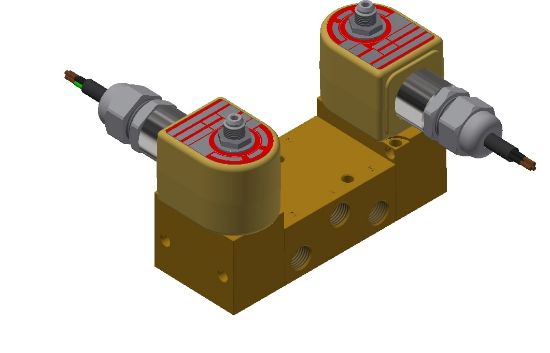

Picture of 7 Family - 4 Way (5/2) Extreme-Duty VAP Valves - 73477BN2PNM0N0H111P3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

7 Family - 4 Way (5/2) Extreme-Duty VAP Valves - 73477BN2PNM0N0H111P3

Parker's VAP (Valve Actuation Process) control valves are used in the word's toughest applications where uptime and compliance are critical.
Availability:
Backordered
SKU 73477BN2PNM0N0H111P3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body MaterialBRASSPort TypeNPT
Input Voltage120/60, 110/50Actuation TypeInternally Piloted
Insulation ClassClass FMaximum Fluid Temperature150.0
Maximum Pressure Differential150.0Maximum Ambient Temperature167.0
Port Size1/4Power Consumption10.0
Ingress Protection RatingUL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3CCoil Type1/2" NPT Conduit with 18" Leads
MediaAir, Inert GasValve Type4 Way (5/2)
InstallationIOM 7701Orifice Size1/4
Seal MaterialNBR - Low TempSpecifications MetUL, CSA Listed General Purpose Valve for Hazardous Locations; SIL 3; CE - Low Voltage, EMC
Main Flow Coefficient1.2Override FunctionalityLocking Manual Override
Minimum Fluid Temperature-40.0Minimum Pressure Differential30.0
Function2 Position, Dual SolenoidPreventive Maintenance Kit7K706
MediaAirPort TypeNPT
Body MaterialBrassPort Size1/4 inch
DivisionFluid Control DivisionMaximum Fluid Temperature150 °F
Maximum Pressure Differential150.0 psiInput Voltage110/50 VAC
Actuation TypeInternal PilotMinimum Fluid Temperature-40 °F
Insulation ClassF (155°C)Power Consumption10 W
Coil Type1/2" NPT Conduit with 18" LeadsValve Type4-Way (5/2)
Seal MaterialNBR - Low TempMain Flow Coefficient1.2 Cv
Minimum Pressure Differential30 psiSpecifications MetCSA listed General Purpose Valve for Hazardous Locations; SIL 3; CE - Low Voltage
InstallationIOM 7505Orifice Size1/4 inch
Override FunctionalityLocking Manual OverrideIngress Protection RatingGroup A,B,C,D Class 1, Div. 1
Maximum Ambient Temperature167 °FFunctionDual Solenoid
Preventive Maintenance Kit7K706
