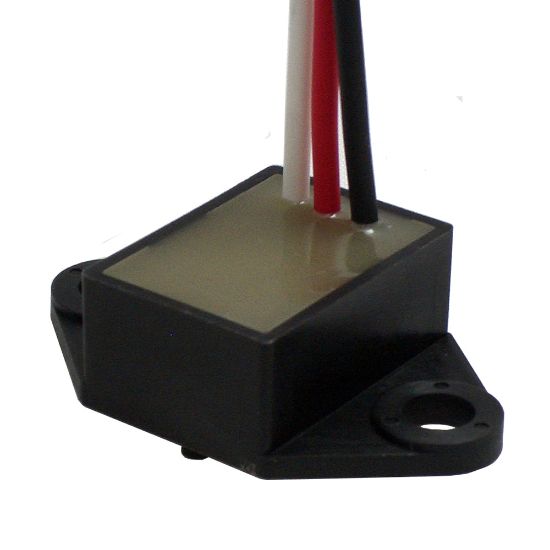

Picture of Accelerometer and Inclinometer Sensors - ACC Series - 171852ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Accelerometer and Inclinometer Sensors - ACC Series - 171852ECD

Parker's Accelerometer and Inclinometer Sensors are MEMs devices with an output voltage dependent on the amount of inertial force applied . The accelerometers and inclinometers have an inertial range up to ±1.5G.
Availability:
Backordered
SKU 171852ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberACC50Minimum Operating Temperature-40 °C
DivisionElectronic Motion and Controls DivisionHousing MaterialGlass-filled Nylon
Ingress Protection Rating67Maximum Operating Temperature125 °C
Sensor TypeTip/tiltElectrical ConnectionDTM04-3P
Signal Output0.5 to 4.5 VDCMounting OptionFlanged
Power Supply Voltage5 VDC RegulatedNumber of Outputs1
Output Voltage±1.5GOperating Current10 mA max.
Mounting Hole Diameter7.14 mm (x2)
California Residents: Prop-65 Warning
Product resources

Literature and Reference Materials
