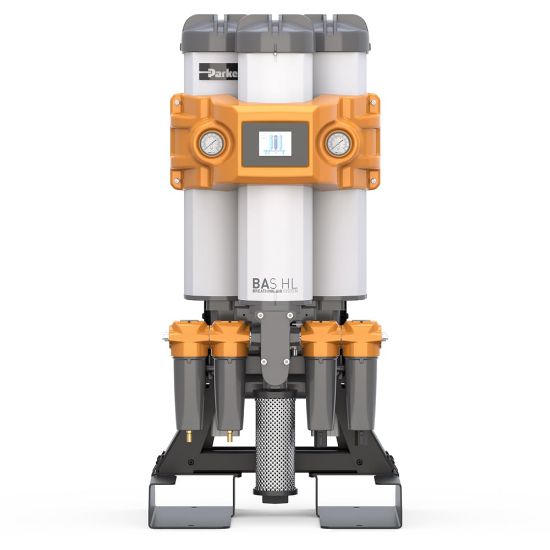

Picture of BAS - Breathing Air System - BASHL050-40N16AE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

BAS - Breathing Air System - BASHL050-40N16AE

Small to medium flow breathing air systems providing purified breathing air, with CO/CO2 reduction. Tested in accordance with European Pharmacopoeia and other international breathing air standards with volume flow rates up to 300 m³/h @ 7 barg.
Availability:
Backordered
SKU BASHL050-40N16AE
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeNPTPort Size½"
Flow Rate55 m³/h @ 7 barg (32 cfm @ 102 psig)Operating Pressure4 to 16 barg
DivisionGas Separation and Filtration Division EMEAOperating Temperature41 to 95 °F
BrandPARKERTechnologyFiltration
Ambient Temperature131.0 °F MaximumPressure Dew Point-40 °F
Height45 inchCompatible PrefilterOIL-X Grades AO and AA Coalescing (Included)
Depth512.0 mmCompatible After FilterOIL-X Grades AO and AA Dry Particulate (Included)<br/>Oil Vapour Reduction and Catalyst Stage (Included)
ISO GradeISO8573-1:2010 Class 1.2.0Weight92 kg
IndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &Electrical RequirementsStandard:<br/>85 - 265 V 1ph 50/60Hz<br/><br/>Option:<br/>24V DC
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionProduct SeriesBAS
Noise Level< 75 dBAProduct TypeBreathing Air Purifier
Ingress Protection RatingIP55 Indoor Use OnlyWidth22 inch
Specifications MetPED 2014/68/EU Fluid Group IIDivisionGas Separation and Filtration Division EMEA
