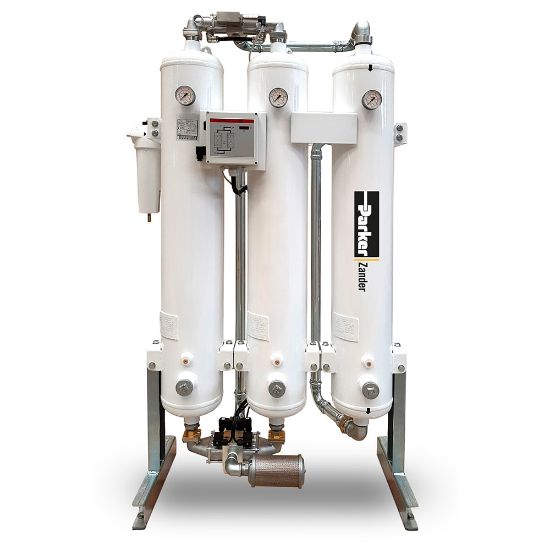

Picture of Breathing Star BSP-MT 10-95 Industrial and Medical Breathing Air System - K10/16BP3-G230M

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Breathing Star BSP-MT 10-95 Industrial and Medical Breathing Air System - K10/16BP3-G230M

Medium to large flow breathing air treatment systems providing purified breathing air, with CO/CO2 reduction. Meeting European Pharmacopoeia and other international breathing air standards with volume flow rates up to 1371 m³/h @ 13 barg.
Availability:
Backordered
SKU K10/16BP3-G230M
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size1 inchElectrical Requirements230V 1ph 50/60Hz
Flow Rate158 m³/h @ 13 barg (93cfm @ 189 psig)Optional AccessoriesNone
Compatible After FilterOIL-X AOPX025E (Included)<br/>OIL-X AAPX025E (Option)Product SeriesBSP-MT 10-95
Application• Tank cleaning<br/>• Spray painting<br/>• Asbestos removal<br/>• Shot blasting<br/>• Tunnelling<br/>• Confined spaces<br/>• Welding<br/>• DemolitionDepth51.2 inch
Operating Pressure4 to 16 bargOperating Temperature5 to 50 °C
Ambient Temperature122.0 °F MaximumIngress Protection RatingIP65 Indoor Use Only
Compatible PrefilterOIL-X AOPX025E and AAPX025E (Included)TechnologyFiltration
Product TypeBreathing Air PurifierNoise Level< 75 dBA
BrandPARKERWidth51.2 inch
Height55.9 inchIndustryAgriculture, Aviation, Chemical, Construction, Electrical Utilities, Fire Service, Food & Beverage Production, Gas Utilities, Hazmat, Iron / Steel Production, Manufacturing, Marine / Shipyard, Mining, Nuclear, Oil & Gas Production, Petrochemical, Pulp &
DivisionGas Separation and Filtration Division EMEAPressure Dew Point-40.0 °F
ISO GradeISO8573-1:2010 Class 2.2.1Weight361.6 lb
Specifications MetPED 2014/68/EU Fluid Group IIConnection TypeBSPP
