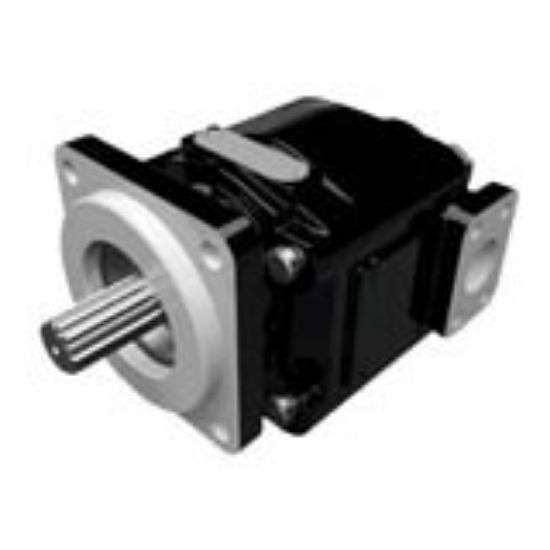

Picture of Cast Iron Motors – PGM365 Series - PGM365

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cast Iron Motors – PGM365 Series - PGM365

Parker’s PGM365 fixed displacement gear motors offers high performance and high endurance due to its cast iron construction.
Availability:
Backordered
SKU PGM365
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Lengthvaries by configurationFor Fluid TypeFire Resistant Fluids : Water-Oil Emulsions 60/40, HFB; Water-Glycol, HFC; Phosphate Esters, HFD
DivisionPump & Motor DivisionDisplacement44.3 to 147.5 cm3/rev (Motor)
Direction of RotationBi-DirectionalWeight56 lb with 1" Gear (add 1 lb each additional 1/4" of gear)
Number of PortsBSPPOperating Temperature0 to 180 °F with standard seals
Product TypeMotor, cast iron bushing, external gearOperating Speed400 to 3000
Continuous Outlet Pressureup to 241Filter Efficiency RatingAccording to ISO 4406: 19/16 at 140 bar (2000 psi), 17/14 at 210 bar (3000 psi), 15/12 at 275 bar (4000 psi)
Maximum Continuous Vacuum Pressure13 cm (5 in) Hg at operating temperatureMaximum Inlet Pressure Rating15
Shaft TypeSAE SplinedMounting TypeSAE 2-Bolt or 4-Bolt
Shaft Seal MaterialNBR
