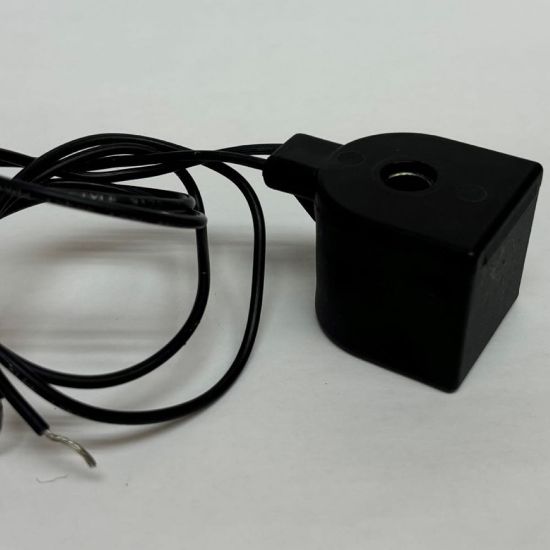

Picture of Chart 8 Solenoid Coils - L322C1

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Chart 8 Solenoid Coils - L322C1

Solenoid coil kits for use on pressure vessels with "Coil Reference 8" / "Chart 8" compatiblity listed in FCD General Purpose Catalog
Availability:
Backordered
SKU L322C1
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Input Voltage24.0Specifications MetcULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC
Compatible ValveFor Chart 8 Compatible Pressure VesselsIngress Protection RatingcULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A
Power Consumption22Insulation ClassClass H
Coil Type1/2" NPT Conduit w/ 72" LeadsIngress Protection RatingNEMA 4,4X
Insulation ClassClass HPower Consumption22 W
Coil Type18" LeadsInput Voltage12.0 VDC
Specifications MetcURus Recognized Component; CE - Low Voltage, EMCCompatible ValveFor Chart 8 Compatible Pressure Vessels
DivisionFluid Control Division
