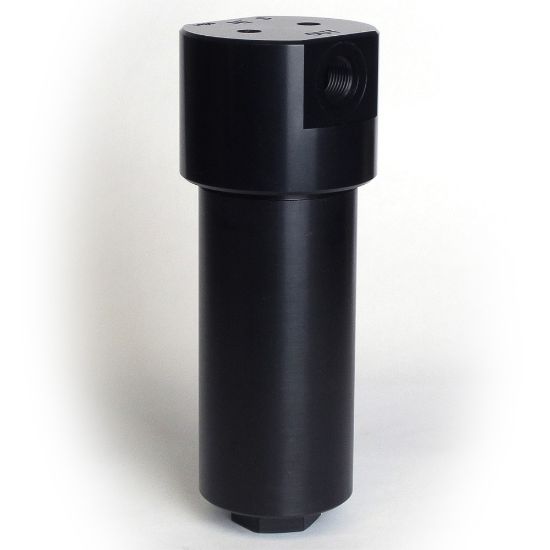

Picture of Compressed Air & Gas Filter - Up to 3600 PSIG - FFC-213 - FFC-213-SAE-10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Air & Gas Filter - Up to 3600 PSIG - FFC-213 - FFC-213-SAE-10

Finite's Inline compressed air and gas FFC-213 filter series is used onboard heavy duty truck and bus CNG(Compressed Natural Gas) powered vehicles.
Availability:
Backordered
SKU FFC-213-SAE-10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Connection (inch)SAE-8Thread TypeSAE
Filter Rating (%)95Maximum Flow Rate (cfm)61 to 1922
Filter TypeCoalescingMicron Rating (µm)1
Compatible ElementDLS113-10KDivisionIndustrial Gas Filtration and Generation Division
BrandFiniteMaximum Operating Pressure248 barg
Plating TypeAnodizedSpecifications MetN/A
ApplicationCNG onboardMinimum Operating Temperature-40 °F
Weight3.5 lbMaximum Operating Temperature105 °C
Head MaterialAluminum 6061-T6Optional AccessoriesNo Accessories
Height214 mmBowl TypeN/A
Drain Port SizeSAE 6Seal MaterialFluorocarbon
Width3.25 inch
Product resources

Literature and Reference Materials
