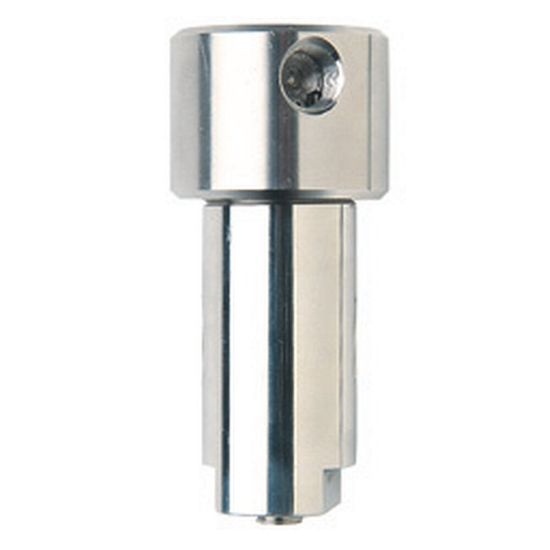

Picture of Compressed Natural Gas (CNG) Assemblies – Racor FFC Series - FFC-116N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Natural Gas (CNG) Assemblies – Racor FFC Series - FFC-116N

Racor FFC CNG Filter / Service Elements protect alternative fuel system injectors and components by removing aerosol contaminants in CNG as small as 0.3 – 0.6 micron with up to 99.97% efficiency.
Availability:
Backordered
SKU FFC-116N
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Material316 Stainless SteelMediaCoalescer grade 10
Port Connection1/4" NPT x2Flow Capacity (CFM)438 @ 5000 psig
Maximum Working Pressure (psi)5000Flow Capacity (m3/h)744 @ 34474 kPa
Maximum Working Pressure (Bar)345BrandRacor
Compatible ElementCLS116-10Weight1.16
Height3.9For Fluid TypeCNG
Maximum Operating Temperature-40 to 350Operating Features0.25 oz. sump capacity
Seal MaterialFlurocarbonDiameter1.75
Mounting Type(Top) 1/4"-20 UNC-2BProduct SeriesCartridge CNG Fuel Filter
DrainPlugApplicationOnboard CNG powered vehicles
DivisionEngine Mobile Original Equipment Division
