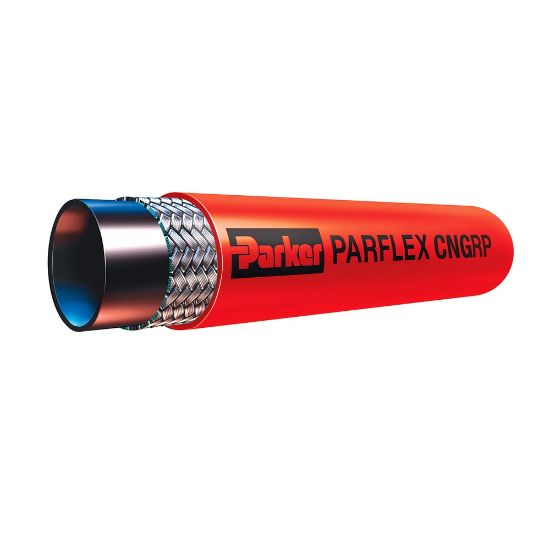

Picture of Compressed Natural Gas Hose - Regulated Pressure - CNGRP - CNGRP-10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compressed Natural Gas Hose - Regulated Pressure - CNGRP - CNGRP-10

Parflex CNGRP hose is the only fully CSA listed fluid conveyance system that is flexible. The flexibility of the product provides reduced warranty costs versus stainless steel tubing in vibration/movement applications.
Availability:
Backordered
SKU CNGRP-10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/2Inside Diameter1/2
Weight0.39Minimum Bend Radius4
ApplicationNatural Gas Transfer (on vehicle)Outside Diameter0.890
Hose Inner Tube MaterialPolyamide (PA)Size-10
Cover MaterialStainless SteelMediaNatural Gas
Compatible Fitting91N SeriesHose Reinforcement MaterialThermoplastic Vulcanizates (TPV)
Maximum Operating Temperature121Design Factor4:1
Minimum Operating Temperature-40Maximum Operating Pressure500
DivisionParflex DivisionSpecifications MetANSI NGV 3.1, CSA 12.3
