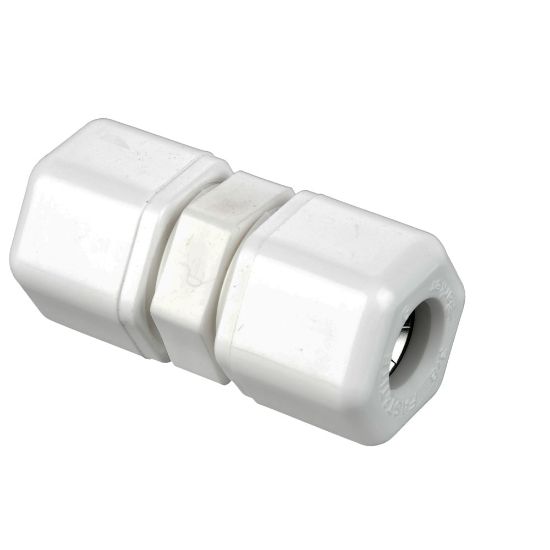

Picture of Compression Style Plastic Fittings, Fast-Tite - W10UC10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Compression Style Plastic Fittings, Fast-Tite - W10UC10

Parker's Fast & Tite fittings installs in seconds without tools for a leak proof seal. Fast & Tite meets FDA and NSF-51 requirements for food contact.
Availability:
Backordered
SKU W10UC10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 1 Tube Outside Diameter5/8" (O.D.)ShapeUnion
ConfigurationTube to TubeConnection 1 TypeCompression
Connection 2 TypeCompressionConnection 2 Tube Outside Diameter5/8" (O.D.)
Body MaterialWhite PolypropyleneDivisionFluid System Connectors Division
Gripping Ring Material302 Stainless SteelMaximum Operating Pressure50
Minimum Operating Temperature0O-Ring MaterialNitrile
ApplicationFiltration, Purification, DispensingTube MaterialThermoplastic, Glass, Soft Metal
Maximum Operating Temperature212Body MaterialPolypropylene
Specifications MetFDA, NSF-51MediaWater, Air, Other Compatible Fluids
