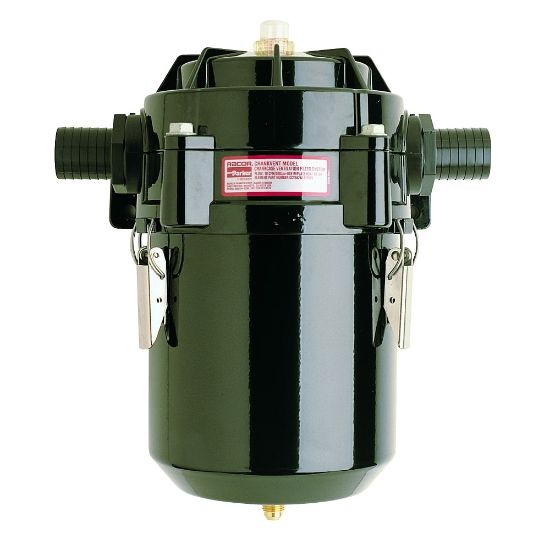

Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CCV6000-10R

Name: Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CCV6000-10R
SKU: CCV6000-10R

Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.

Availability:

Backordered

SKU CCV6000-10R

POR

Qty:

Products specifications

Attribute name	Attribute value
Function	Bypass Assembly	Inlet Location	Right
Filtration Ratings	Ultra	Type/Configuration	Closed System
Maximum Output	800 HP / 600 kW	Maximum Flow Rate	20 cfm / 0.57 m3/m
Division	Engine Mobile Original Equipment Division	Brand	Racor
For Fluid Type	Engine Blowby Gas	Drain	Drain Kit: Hose, Check Valve, (2) Swivel Fitting
Mounting Type	Integrated Head Bracket	Indicator Type	Element Bypass/Change Indicator
Interface Type	Remote By-pass Indicator Kit CCV55615-01	Product Series	Cartridge Crankcase Ventilation
Pressure Regulator Type	Integral Crankcase Pressure Regulator	Materials of Construction	Die cast head, glass filled nylon and black powder epoxy-coated aluminium bowl
Depth	7.3 inch	Width	8.6 inch
Height	30.5 cm	Heat Type	100W Optional: CCV55462 (120VAC) CCV55462-12 (12VDC) CCV55462-24 (24VDC)
Port Size	1-5/8 inch SAE 12	Compatible Element	High: CCV55274-08, Ultra: CCV55274-10
