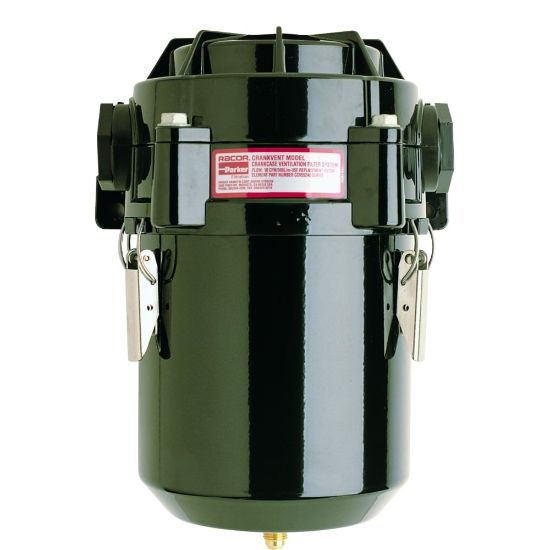

Picture of Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CCV6001-10R

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Crankcase Ventilation Systems (Open or Closed) – Racor CCV and CV Series - CCV6001-10R

Racor Crankcase Ventilation Systems prevent fouling of critical engine components, such as turbochargers and after-coolers, by removing oil contamination from engine bypass gases. Available in open (CV) and closed (CCV) configurations.
Availability:
Backordered
SKU CCV6001-10R
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
FunctionNon-Bypass AssemblyInlet LocationRight
Filtration RatingsUltraType/ConfigurationClosed System
Maximum Output800 HP / 600 kWMaximum Flow Rate20 cfm / 0.57 m3/m
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Height12For Fluid TypeEngine Blowby Gas
DrainDrain Kit: Hose, Check Valve, (2) Swivel FittingMounting TypeIntegrated Head Bracket
Indicator TypeElement Change IndicatorInterface TypeRemote By-pass Indicator Kit CCV55615-01
Product SeriesCartridge Crankcase VentilationPressure Regulator TypeIntegral Crankcase Pressure Regulator
Materials of ConstructionDie cast head, glass filled nylon and black powder epoxy-coated aluminium bowlDepth7.3
Width8.6Heat Type100W Optional: CCV55462 (120VAC) CCV55462-12 (12VDC) CCV55462-24 (24VDC)
Port Size1-5/8 inch SAE 12Compatible ElementHigh: CCV55274-08, Ultra: CCV55274-10
