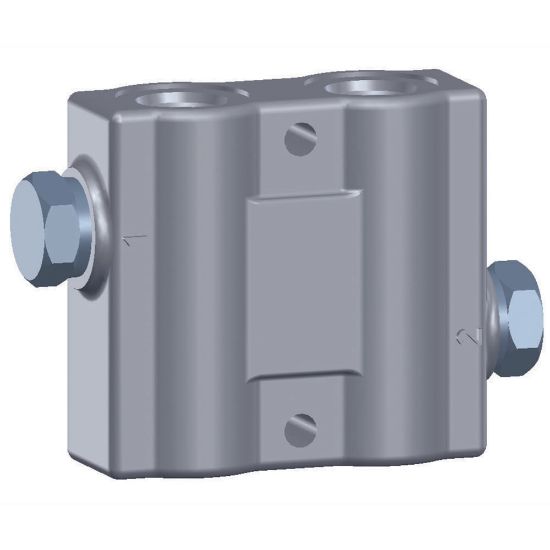

Picture of Direct Acting Crossover Relief - DXV Series - DXV-10-400

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Direct Acting Crossover Relief - DXV Series - DXV-10-400

Parker’s DXV Crossover Relief Valve is a fast, direct acting design that provides pressure overload protection for an actuator where the relieved flow is 10 GPM or less.
Availability:
Backordered
SKU DXV-10-400
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port SizeSAE-10Pressure Relief Setting (psi)50-400
Adjustment TypeShim AdjustableFor Fluid TypeHydraulic Oil
Maximum Flow Rate10Weight4
Minimum Operating Temperature-40Body MaterialHigh Strength Cast Iron
Pressure Control Range50-400Mounting TypeIn-Line
Actuation TypeHydraulic PressureSeal MaterialNitrile
Maximum Operating Temperature+200DivisionHydraulic Valve Systems Division
Connection TypeSAEConnection Size#10
Maximum Operating Pressure3000
Product resources

Literature and Reference Materials
