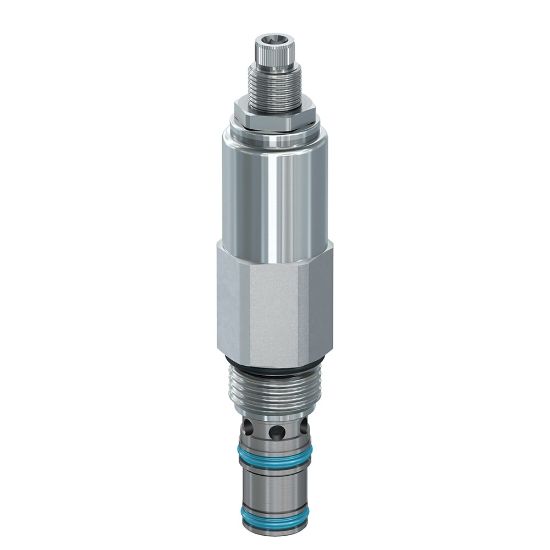

Direct Acting Pressure Reducing Relieving Valves - PR103F02

Name: Direct Acting Pressure Reducing Relieving Valves - PR103F02
SKU: PR103F02

Parker’s direct acting reducing & relieving valves are used in intermittent duty applications where specific functions require reduced and regulated pressure. Capable of flows up to 56 lpm (13 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU PR103F02

POR

Qty:

Products specifications

Attribute name	Attribute value
Pressure Control Range	75-200 PSI, 5.2-13.8 BAR	Flow Rate	15 GAL/MIN, 56 L/MIN
Seal Material	D-Ring (Standard)	Adjustment Mechanism	Fixed
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Maximum Operating Pressure	3000
Operating Temperature	-35 to +200	Maximum Drain Flow Rate	0.03
Maximum Operating Temperature	+200	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Actuation Type	Pressure Sensing
Pressure Control Range	75-200	Maximum Inlet Pressure Rating	3000
Configuration	Pressure Reducing/Relieving	Pressure Control Sensitivity	n/a
Seal Material	D-Ring (Standard)	Minimum Operating Temperature	-35
Standard Setting Pressure	100	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Pressure Setting	200	Body Material	n/a
Weight	0.5	Adjustment Mechanism	Fixed
Installation Torque	50-56	Flow Rate	15
Function	Direct Acting	Valve Material	All parts steel. All operating parts hardened steel.
Cavity Size	C10-3	Maximum Pressure Differential	1000
Division	Hydraulic Systems Division	Mounting Type	Screw in cartridge valve
Maximum Tank Pressure	1800	Operation Type	Automatic
Maximum Flow Rate	15
