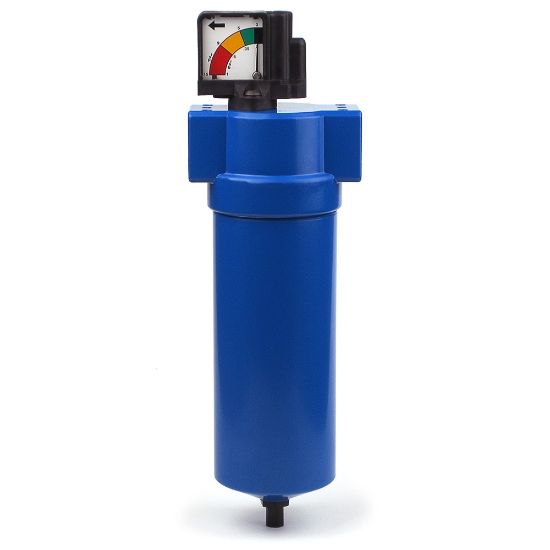

Picture of Finite H-Series Filter Housings - HF3S-6QUY

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Finite H-Series Filter Housings - HF3S-6QUY

Parker’s Finite filter vessels eliminate oil, water, and particulate contamination from large flows of compressed air and gas.
Availability:
Backordered
SKU HF3S-6QUY
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Rating (%)99.97Port Connection (inch)3/4
Micron Rating (µm)0.01Thread TypeBSPP
Pre-Installed Optional AccessoriesAuto Drain and DPG GaugeElement Seal MaterialUrethane
LengthStandardMaximum Flow Rate (cfm)80 @ 100 PSIG
Replacement Element6QU15-060 X 4Filter TypeCoalescer
Maximum Operating Temperature79 °CElement Removal Clearance5.51 inch
Maximum Flow Rate112 m3/hour at 7 barWeight0.85 kg
Width79 mmHeight10 inch
DivisionIndustrial Gas Filtration and Generation DivisionBrandFinite
