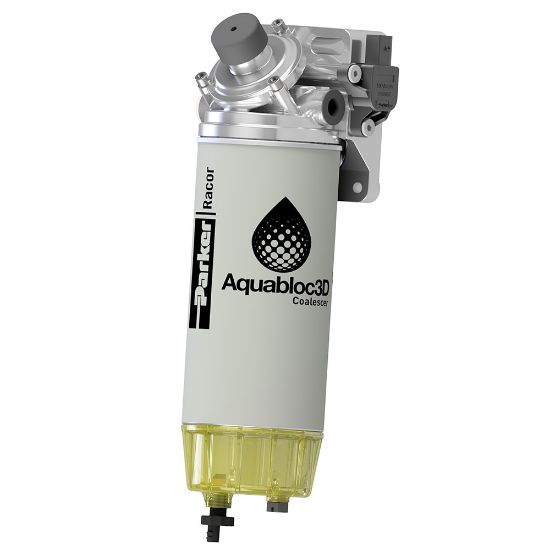

Picture of Fuel Filter Water Separator – Racor Spin-on Series - WBH4160RD2410-M18-E6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Filter Water Separator – Racor Spin-on Series - WBH4160RD2410-M18-E6

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Backordered
SKU WBH4160RD2410-M18-E6
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Micron Rating98% @ 10 MicronPort SizeM18 1.5
Integral Primer Pump IncludedButton Priming Pump (Diesel)Bowl TypeClear Engineering Plastic
Flow Rate170 gph (640 lph)LocationEMEA region only
Product SeriesDiesel Spin-on 4PMPart TypeFilter Assembly
Heater Power Rating190W Daimler HeaterOperating Temperature-40 to 250 °F
BrandRacorHead MaterialAluminium Alloy
Clean Pressure Drop0.87 psiCompatible ElementR160-3D-RCR-01
Height400 mmMaximum Fluid Temperature88 °C
Number of Ports2 Inlet / 2 OutletProduct TypeFuel Filter
Maximum Operating Pressure45 psiWidth142 mm
Depth130 mmWeight0.75 kg
DivisionEngine Mobile Original Equipment DivisionFilter Element Type10 Micron Aquabloc
For Fluid TypeDiesel
Product resources

Literature and Reference Materials
