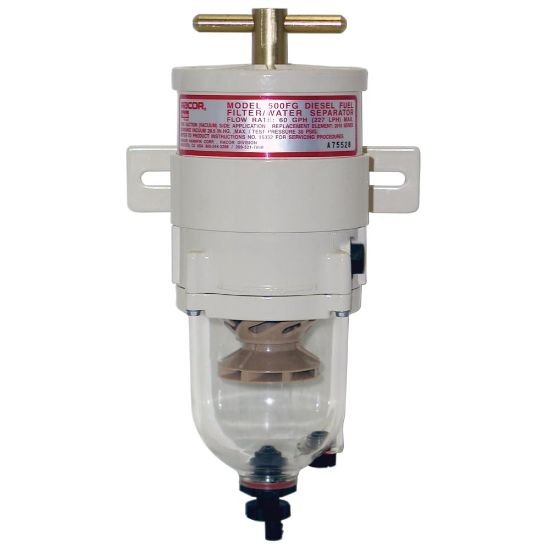

Fuel Filter Water Separator – Racor Turbine Series - 500FG1230

Name: Fuel Filter Water Separator – Racor Turbine Series - 500FG1230
SKU: 500FG1230

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:

Backordered

SKU 500FG1230

POR

Qty:

Products specifications

Attribute name	Attribute value
Heater	12 Volt	Flow Rate	60 gph (227 lph)
Product Type	500FG Filter Housing	Location	North America and EMEA regions
Part Type	500 Single Turbine Assembly	Micron Rating	98% @ 30 Micron
Application	Mobile Filtration	Valve Type	None
Catalog Number	See RSL0288	Brand	Racor
Series or Model Replaced	Active Part	Division	Engine Mobile Original Equipment Division
Bowl Type	Clear Engineering Plastic	Connection Type	3/4"-16 UNF-2B SAE Female

Product resources

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)

Literature and Reference Materials

Cut Sheet - RSL0385- Racor Series (PDF)
