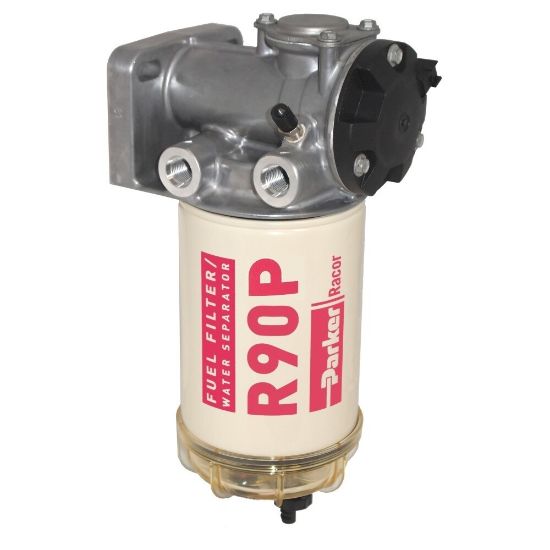

Fuel Filter Water Separator with Integrated Priming Pump – Racor 700 Series - P790R30

Name: Fuel Filter Water Separator with Integrated Priming Pump – Racor 700 Series - P790R30
SKU: P790R30

The Racor 700 Series Fuel Filter Water Separator is a two-stage filtration system designed for use in diesel engine applications. Its integrated fuel pump allows for easy system priming and eliminates messy filter pre-filling and engine hard starting.

Availability:

Backordered

SKU P790R30

POR

Qty:

Products specifications

Attribute name	Attribute value
Pump Type	12V DC, Brushed	Micron Rating	98% @ 30 microns
Flow Rate	90 gph / 340 lph	Division	Engine Mobile Original Equipment Division
Brand	Racor	Bowl Type	Clear Engineering Plastic
For Fluid Type	Diesel	Application	Electric Priming
Product Series	Cartridge FF/WS Pump	Depth	6.5
Width	4.3	Port Size	7/8"-14
Pump Type	47 gph (170 lph)	Mounting Type	Head Bracket
Clean Pressure Drop	0.25	Water Sensor Option	Included
Optional Accessories	See Product Overview & Support Tabs	Height	12.8
Compatible Element	R90P
