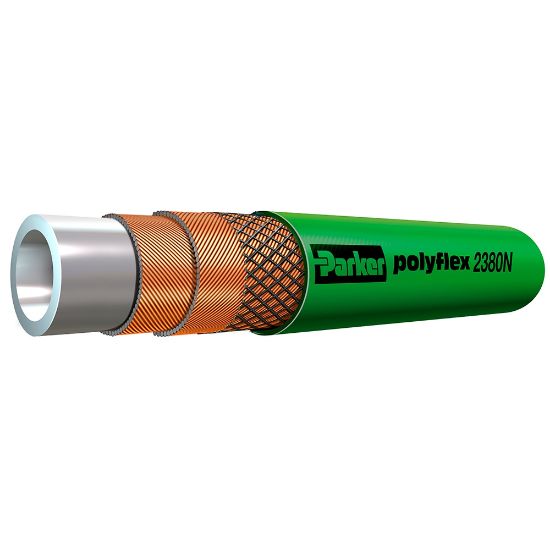

Picture of High Pressure Hydraulic Hose - 2380N/2388N - 2380N-04V03

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Hydraulic Hose - 2380N/2388N - 2380N-04V03

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.
Availability:
Backordered
SKU 2380N-04V03
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)1/4Cover ColorGreen
Maximum Working Pressure (psi)10,150Minimum Operating Temperature-40 °F
DivisionParflex DivisionSize-4
Inside Diameter1/4 inchSpecifications MetN/A
Design Factor4:1Maximum Operating Temperature212 °F
Minimum Bend Radius70 mmCover MaterialPolyurethane
Weight0.27 kg/mOutside Diameter0.530 inch
MediaPetroleum Hydraulic FluidsCompatible Fitting8X Series
ApplicationPortable EquipmentMaximum Operating Pressure10150 psi
Hose Inner Tube MaterialPolyamide 12Hose Reinforcement Material2 Spirals and 2 Open Spirals of High Tensile Steel Wire
