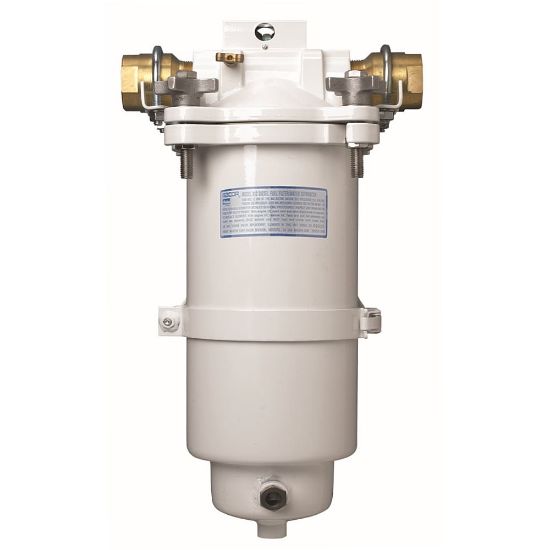

Picture of Fuel Filtration Assemblies – Racor FBO Series - FBO-14-MA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Filtration Assemblies – Racor FBO Series - FBO-14-MA

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.
Availability:
Backordered
SKU FBO-14-MA
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pre-Installed Optional AccessoriesDP Indicator, Water Sight Glass, Bracket/FittingsNumber of HousingsOne Head and Housing
Use CaseMarineFlow Rate (gpm)Up to 30 in Diesel, 75 Gasoline
Filter Element25 Micron Coalescing FilterFlow Rate (lph)Up to 115 in Diesel, 285 Gasoline
Valve TypeNoneWeight17 lb
Port SizeNPT (2x)Compatible ElementFBO 60338
Heat TypeN/APressure Rating10.3 bar at 115°C
For Fluid TypeDiesel/B20/GasolineOperating Temperature-40 to 124 °C
Width9.5 inchMicron Rating5 MICRON
ApplicationFuel Transfer/Engine FiltrationMaterials of ConstructionAluminum head, Steel Bowl
DivisionEngine Mobile Original Equipment DivisionProduct SeriesFBO
Indicator TypeDelta P Indicator IncludedHeight24 inch
BrandRacorWater Sensor OptionOrder Part# RK18-1656 bushing + RK30880E Sensor
Drain OptionDrain Valve IncludedAdditional OptionsWater Sight Glass Included
Mounting TypeBracket Kit Included
