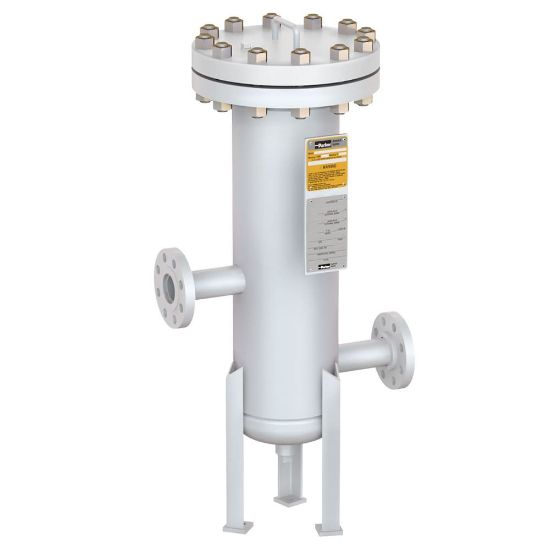

Picture of FULFLO HT MULTI-CARTRIDGE FILTER VESSELS | CARBON STEEL, ASME CODE DESIGN FOR HIGH TEMPERATURE FILTRATION - HT6-2-2F-U300

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

FULFLO HT MULTI-CARTRIDGE FILTER VESSELS | CARBON STEEL, ASME CODE DESIGN FOR HIGH TEMPERATURE FILTRATION - HT6-2-2F-U300

The carbon steel Fulflo HT multi-cartridge filter vessel is designed for heat transfer oils and other high temperature fluids.
Availability:
Backordered
SKU HT6-2-2F-U300
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection Size2-inch ANSIQuantity6 cartridges
Pressure RangeU 300Length (inch)20
Seal MaterialBuna-N (250 F max.)Filter ConstructionMulti-Cartridge Filter Vessel
Specifications MetASME Sec. VIII, Div. 1, U stampFunctionClarification/Prefiltration/Polishing
Maximum Operating Temperature650Maximum Operating Pressure417
DivisionIndustrial Process Filtration DivisionFlow Rate60
Branddomnick hunterIndustryInks, Paints and Coatings
MediaCarbon Steel
Product resources

Literature and Reference Materials
