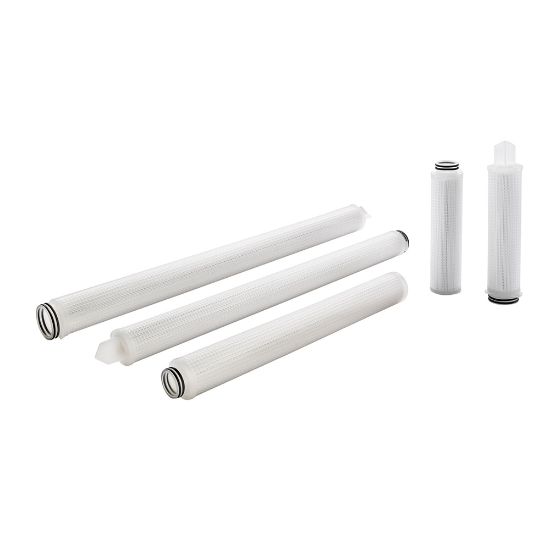

Picture of GLASS-MATE™ PMG Liquid Filter Cartridge - 109582

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GLASS-MATE™ PMG Liquid Filter Cartridge - 109582

Glass-Mate™ PMG filter cartridges remove contaminants from a wide range of liquid applications. The pleated style cartridges are made using glass media with outer support. Available from 0.2 to 40 micron rating options with variety of end cap options.
Availability:
Backordered
SKU 109582
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
End Cap MaterialPolypropyleneSeal MaterialViton
Maximum Operating Temperature200 FEnd Cap ConfigurationSOE - Closed top w/ flex fin, open bottom w/ external 222 o-ring
Core MaterialGlass-Filled PolypropyleneBody MaterialPolypropylene Extruded Cage
Model NumberELMT PMG004-20FV-TXMicron Rating0.45
Product SeriesPMGCartridge Length19.6875" Shoulder-Shoulder
Maximum Pressure Differential90 PSID @ 75 FDivisionIndustrial Process Filtration Division
BrandPARKERDivisionIndustrial Process Filtration Division
IndustryIndustrialTechnologyFiltration
ApplicationLiquid Particulate FiltrationProduct TypeFilter Cartridge
Flow DirectionOutside-to-insideFilter ConstructionPleated
pH Range3-9Filter MaterialGlass with Acrylic
Quantity per Box6.0Nominal Inside Diameter1
Nominal Outside Diameter2.5Changeout Pressure Differential35
