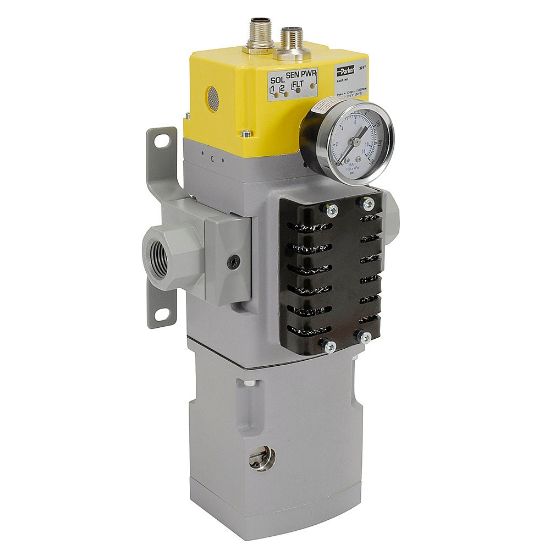

Global FRL Valves (Safety Exhaust) - P33DB16CAEM

Name: Global FRL Valves (Safety Exhaust) - P33DB16CAEM
SKU: P33DB16CAEM

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Availability:

Backordered

SKU P33DB16CAEM

POR

Qty:

Products specifications

Attribute name	Attribute value
Product Style	[P33D] - Without Soft Start	Port Size	[6] - 3/4 inch
Pressure Gauge	[EM] - MPS-P34 pressure sensor	Solenoid Connection	[C] - M12 pins: 3 & 4 for bipolar outputs
Sensor Connection	[A] - M12 pins: 1&2, 1&4, common 3	Port Type	[B1] - BSPP "G"
Options	Black Grill	Minimum Operating Pressure	10
Seal Material	Nitrile Butadiene Rubber (NBR)	Maximum Operating Pressure	150
Product Type	Safety Exhaust Valve	Brand	PARKER
Height	17.87	Length	10.93
Division	Pneumatic Division	Technology	Pneumatics
Weight	1.9	Port Type	NPT
Product Style	Electro-Pneumatic (Solenoid Actuated)	Body Material	Cast Aluminum
Electrical Connection	M12 (x2)	Industry	General Industry
Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)	Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)
Operating Temperature	4 to 50	Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)
Flow Rate	≤ 265	Width	8
Function	3/2 Normally-Closed	Input Voltage	24
Port Size	3/4
