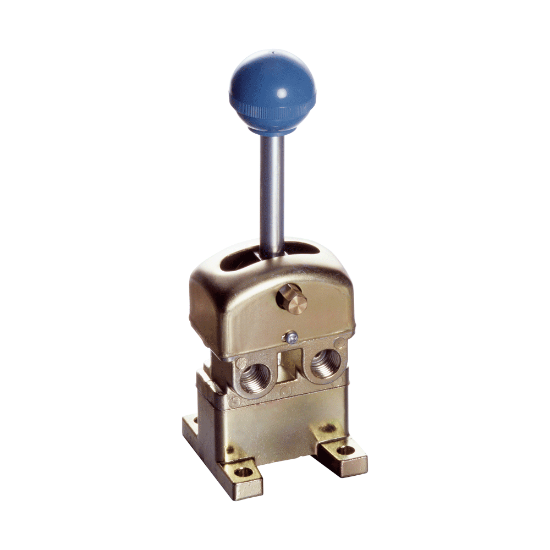

Picture of Hand Valve Model:4PN - H3FG00008591

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hand Valve Model:4PN - H3FG00008591

4-port switching valve 4PN series for hand operation that is extremely durable with a robust structure. A wide variety of connection port sizes are available, from Rc1/4 to Rc3/4. (BSPT)
Availability:
Backordered
SKU H3FG00008591
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Spool Type4-port 3-positionValve TypeLever Operation
Orifice Size31mm²Spool Position3-position closed center(Detent)
Outlet Port SizeRc3/8For Fluid TypeAir
DivisionTAIYO DivisionWeight2.3 kg
Operating Temperature-10 to 50 °C (No freezing)(Ambient/Fluid temperature)LubricantJIS K2213 Class 1 (Additive-free Turbine Oil ISO VG32) or its equivalent
InstallationFreeProof Pressure1.5 MPa
Pressure Rating0 to 1 MPa
