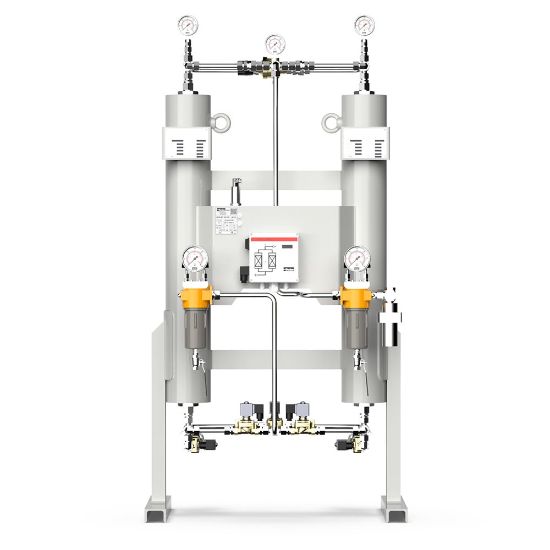

HDK Series High Pressure Compressed Air Dryer (up to 50 bar g) - H120/50D0-G230M

Name: HDK Series High Pressure Compressed Air Dryer (up to 50 bar g) - H120/50D0-G230M
SKU: H120/50D0-G230M

For applications requiring high pressure compressed air or nitrogen gas up to 50 barg (725 psig) with volume flows up to 1180m³/h (695 cfm)and pressure dew point options of -25, -40°C and -70°C.

Availability:

Backordered

SKU H120/50D0-G230M

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Size	1/2"	Controller Type	Multitronic
Maximum Flow Rate	240m³/h @ 50 bar g, 35°C	Minimum Ambient Temperature	1 °C
Pressure Dew Point	-13 to -97 °F	Minimum Operating Pressure	58.02 psig
Maximum Operating Temperature	122 °F	Brand	Zander
Division	Gas Separation and Filtration Division EMEA	Compatible Prefilter	G7/50XP
Maximum Flow Rate	141.26 CFM at 362.59 psig, PDP to 104°F	Connection Type	BSP-P
Minimum Operating Temperature	25 °C	Weight	113 kg
Maximum Operating Pressure	50 barg	Depth	400 mm
Maximum Ambient Temperature	50 °C	Compatible After Filter	G7/50V
Electrical Requirements	230V, 50-60Hz, others on request	Ingress Protection Rating	65
Specifications Met	PED, others on request	Width	786 mm
Product Type	High Pressure Adsorption	Height	1489 mm
