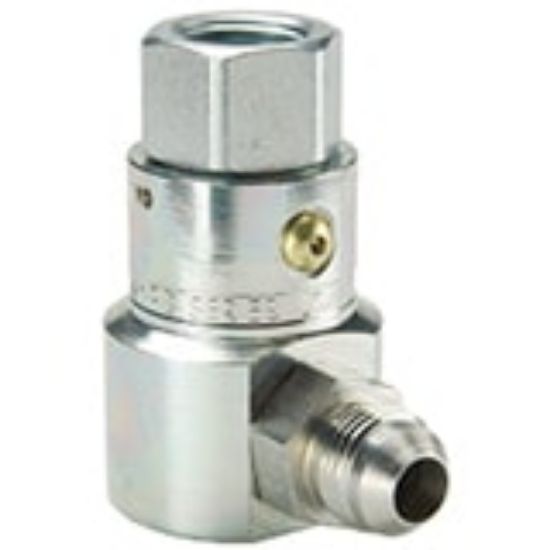

Picture of High Pressure, Inline Hydraulic Swivels - PS Series - PS1290203-12-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure, Inline Hydraulic Swivels - PS Series - PS1290203-12-12

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.
Availability:
Backordered
SKU PS1290203-12-12
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Shaft Connection StyleFemale NPTFMaximum Working Pressure (psi)5000
Seal MaterialNitrileShaft Connection Thread Size (inch)3/4 - 14 NPTF
Housing Connection StyleMale JIC 37 degreeConfiguration90 degree
Body Size (inch)3/4Housing Connection Thread Size (inch)1 1/16 - 12 UN
Configuration90 degreePlating TypeZinc with clear trivalent chromate
Maximum Operating Temperature250Minimum Operating Temperature-40
DivisionQuick Coupling DivisionBody MaterialSteel
