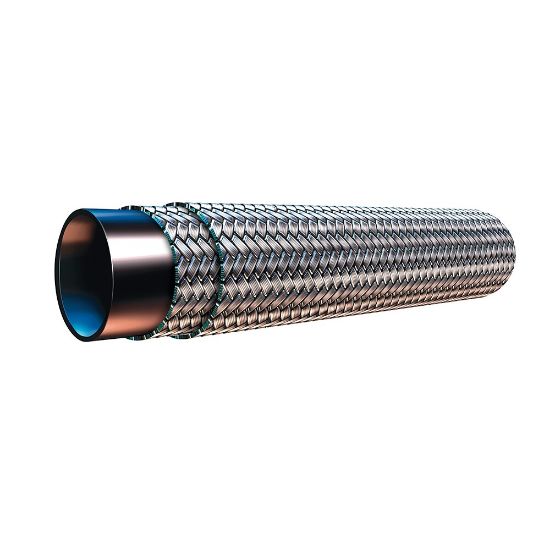

Picture of High Pressure PTFE Hose - 944B-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure PTFE Hose - 944B-8

PTFE High Pressure Hydraulic Hose Assemblies have exceptional chemical compatibility, resist moisture, and handle pressures up to 5,500 psi. They are designed for high temp hydraulics,chemical transfer, and compressor discharge applications.
Availability:
Backordered
SKU 944B-8
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Dash Number-8Maximum Working Pressure (psi)4,500
Maximum Operating Pressure4500Specifications MetN/A
Outside Diameter0.620MediaAir
Hose Inner Tube MaterialPolytetrafluoroethylene (PTFE) Static DissipativeMinimum Operating Temperature-65
ApplicationAdhesive DispensingWeight0.25
Maximum Operating Temperature400Product StyleStatic Dissipative
Minimum Bend Radius2.88Hose Reinforcement MaterialBraid of Stainless Steel
Design Factor4:1Inside Diameter7/16
Size-8Compatible Fitting94 Series
Cover Materialn/a
