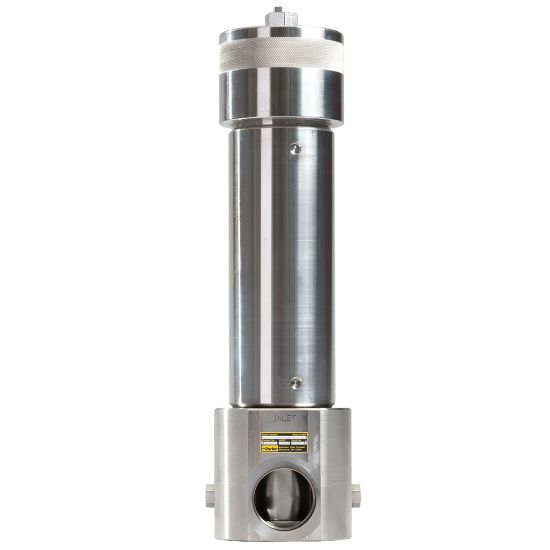

Picture of High Pressure Stainless Steel Filter 40S Series - 40S202QHEPKS321

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

High Pressure Stainless Steel Filter 40S Series - 40S202QHEPKS321

The 40S Series is a high pressure filter constructed in all 316 stainless steel which makes it ideally suited for water and caustic applications or where harsh environmental conditions exist. Allowable operating pressure of 3000 PSI/138 Bar.
Availability:
Backordered
SKU 40S202QHEPKS321
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialEthylene PropyleneIndicator TypePort plugged
OptionsBypass (steel spring)Port Connection TypeSAE-32
Filter Element02QH MicroglassFlow Rate (gpm)75
Bypass Valve (psi)50Mounting TypeInline
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Maximum Operating Temperature225Seal MaterialEthylene Propylene
Pressure Rating3000Indicator Pressure SettingNo Indicator
Weight65Port TypeSAE-32
Housing Material316 Stainless SteelCompatible Element945774Q
OptionsBypass (steel spring)Flow Rate283
Indicator TypePort PluggedFilter Element Type02QH Microglass
Bypass Valve Pressure Rating50
