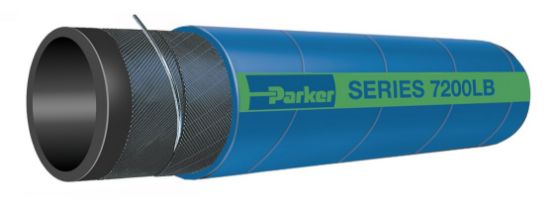

Picture of Hydrocarbon High Temperature Oil Resistant Large Bore Drain Hose, Series 7200LB - 7200LB-4000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydrocarbon High Temperature Oil Resistant Large Bore Drain Hose, Series 7200LB - 7200LB-4000

Note: This product is no longer available – please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Backordered
SKU 7200LB-4000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Hose I.D. (inch)4DivisionHose Products Division
Specifications MetN/APackage TypeCoil
Length per Package100 ftCover ColorBlue
Minimum Bend Radiusn/aMaximum Operating Pressure2.1 MPa
Cover MaterialChloroprene Rubber (CR)Hose Inner Tube MaterialNitrile
Size-64Inside Diameter101.6 mm
Minimum Operating Temperature-29 °CHose Reinforcement Material4 Plies of Textile with Static Wire
Cover StructureWrappedMediaFuels (Hot Petrochemical Residue)
Weight4.26 kg/mApplicationDrainage Lines
Outside Diameter4.8 inchMaximum Operating Temperature149 °C Continuous
Nominal Hose Inside Diameter100 mmVacuum Pressure Ratingn/a
