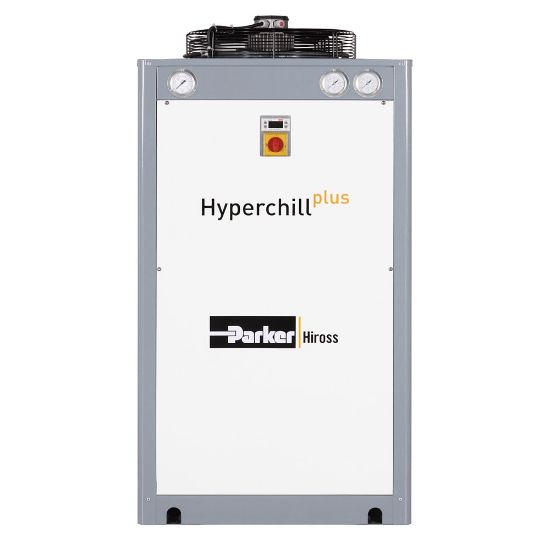

Picture of Hyperchill Plus - Industrial Water Chiller for Precision Cooling of Low Viscosity Industrial Cooling Fluids - ICEP005-WAFP3T0000000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hyperchill Plus - Industrial Water Chiller for Precision Cooling of Low Viscosity Industrial Cooling Fluids - ICEP005-WAFP3T0000000

This product is no longer available, please refer to Hyperchill Plus-E 50Hz Range instead.
Availability:
Backordered
SKU ICEP005-WAFP3T0000000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Cooling MethodAir Cooled / Axial FansWater Sensor OptionNo Low Water
Additional Protection IncludedWithout AntifreezePump TypeSingle Pump 3 bar
Hydraulic CircuitWith TankOperating EnvironmentNo Low Ambient
Output Water Temperature RangeWithout Close ControlOptionsNo Options Selected
Kit TypeWithout Fill KitPower Supply Voltage230V/1Ph/60Hz
Maximum Cooling Capacity5.2 kW @ 25°C (63°F)DivisionGas Separation and Filtration Division EMEA
DivisionGas Separation and Filtration Division EMEAPort Size3/4 inch
For Fluid TypeWaterIndustryFood & Beverage
BrandHirossRefrigerant TypeR407c
Product TypeProduction Process Water ChillerSpecifications MetPED 97/23/EC
Product StylePressurized Closed Hydraulic CircuitTechnologyThermal and Power Management
Operating Temperature5 to 30 °CPort TypeThreaded
ApplicationPrecision Cooling of Low Viscosity Industrial Cooling FluidsDepth21.1 inch
Width755 mmHeight31.5 inch
Tank Capacity22.5 LProduct SeriesHyperchill Plus
Ambient Temperature118.4Compressor IncludedHermetic Piston
Number of Axial Fans1Weight85 kg
Ingress Protection RatingIP33
