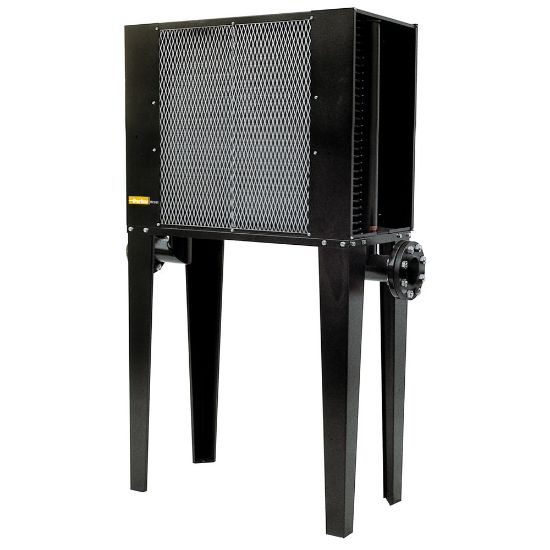

Picture of Hypercool Air Cooled Aftercooler - ADS000

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hypercool Air Cooled Aftercooler - ADS000

Highly efficient air cooled aftercoolers for the removal of water vapour and cooling of compressed air downstream from compressors and blowers.
Availability:
Backordered
SKU ADS000
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Port Size¾"Flow Rate36 m³/h @ 7 barg (21 cfm @102 psig)
Electrical Requirements230V/1ph/50HzConnection TypeBSPP
Micron RatingNot ApplicableWeight31 lb
Operating Pressure16 barg (max.)Width475 mm
ApplicationCompressed AirProduct SeriesHypercool Air Cooled Aftercooler
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
BrandPARKERNoise Level33.2 dBA
TechnologyFiltrationProduct TypeAftercooler
Height794 mmDepth216 mm
IndustryElectronicsProduct StyleAir Cooled
Maximum Air Inlet Temperature392 °F
