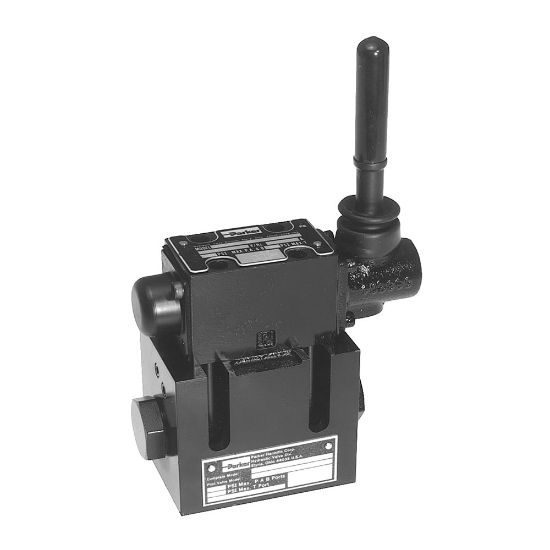

Lever Operated Directional Control Valve - D31DL, D31VL Series - D31DL001C2N7

Name: Lever Operated Directional Control Valve - D31DL, D31VL Series - D31DL001C2N7
SKU: D31DL001C2N7

Parker’s D31*L directional control valves are 5-chamber, pilot operated, lever controlled valves.

Availability:

Backordered

SKU D31DL001C2N7

POR

Qty:

Products specifications

Attribute name	Attribute value
Size	NFPA D05HE, CETOP 5H (ISO)	Maximum Flow Rate	Up to 40 GPM depending on spool
Mounting Type	Subplate	Maximum Operating Pressure	5000 PSI
Weight	12	Spool Code	4-Way
Spool Position	Double Operator	Seal Material	Nitrile
Pilot Inlet / Drain Locations	External Pilot / External Drain	Maximum Operating Pressure	5000
Mounting Type	Subplate	Actuation Type	Hydraulic Pressure
Body Material	Gray Iron	Division	Hydraulic Valve Systems Division
Minimum Operating Temperature	-4	Valve Type	Lever Operated Directional Control Valve
Options	Pilot Choke Meter-out	Maximum Flow Rate	40
Maximum Operating Temperature	140
