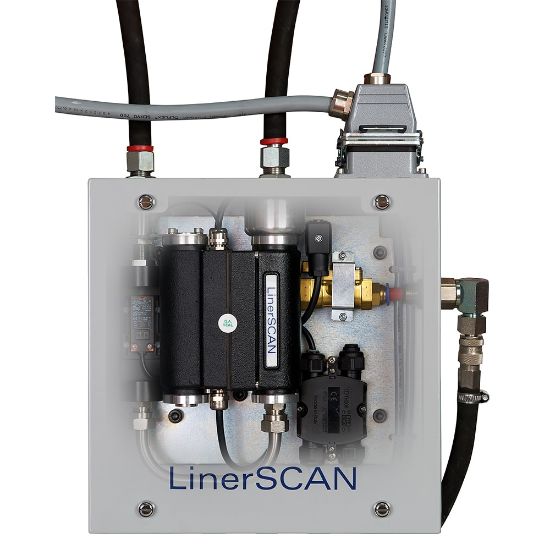

LinerSCAN - Cylinder Liner Monitor - FGK17400PA

Name: LinerSCAN - Cylinder Liner Monitor - FGK17400PA
SKU: FGK17400PA

Parker LinerScan system is designed to remove the uncertainty of cylinder damage resulting from low fuel quality, slow steaming, low sulphur levels, lower oil feed rates and cylinder oil formulation changes.

Availability:

Backordered

SKU FGK17400PA

POR

Qty:

Products specifications

Attribute name	Attribute value
Options	one per cylinder	Air Inlet Connection Size	1/2” BSP
Maximum Fluid Temperature	65	Specifications Met	CE Certification
Product Type	Condition Monitor	Body Material	Mild Steel
Communication Interface	CANbus	Cycle Time	30
For Fluid Type	Cylinder Oil	Product Style	Particle Detector/Counter
Ingress Protection Rating	IP65	Electrical Requirements	24
Seal Material	Fluorcarbon	Materials of Construction	Mild Steel
Technology	Filtration	Brand	PARKER
Division	Hydraulic & Industrial Process Filtration Division EMEA	Operating Pressure	10
Height	300	Minimum Fluid Temperature	10
Length	300	Operating Temperature	0 to 65
Flow Rate	> 30	Weight	17
Port Size	1/2	Signal Output	4 to 20
Sensing Method	Ferrography	Industry	Marine
Width	94	Port Type	BSP
Division	Hydraulic & Industrial Process Filtration Division EMEA
