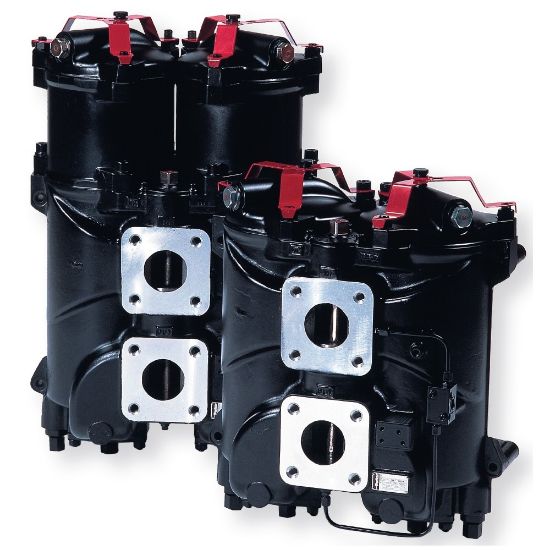

Picture of Low Pressure In-Line Duplex Filter - DF2035 Series - DF20352015NVNHD651

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Low Pressure In-Line Duplex Filter - DF2035 Series - DF20352015NVNHD651

The DF2035 is a series of Light weight, low pressure, high flow capacity duplex filters for gear and diesel engine lube system applications.
Suitable for flows up to 800 l/min and pressures up to 8 bar.
Availability:
Backordered
SKU DF20352015NVNHD651
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Element015N Cellulose *Indicator TypeNo indicator block, ports plugged *
Flow Capacity (l/min)400 *Housing MaterialAluminium
Operating Temperature-20 to 120Seal MaterialFluorelastomer
DivisionHydraulic & Industrial Process Filtration Division EMEAPort TypeDN65/PN16 ref. Square flange & Blind counter flange
Bypass Valve Pressure Rating2Pressure Rating8
OptionsWith bypassFlow Rate400
Mounting TypeInline
